GPSMAP® 1042xsv Combo GPS/Fishfinder GN+
You're a cruiser or sailor who prefers a keypad and wants built-in sonar and mapping. You need this all-in-one 10" chartplotter to guide the way.

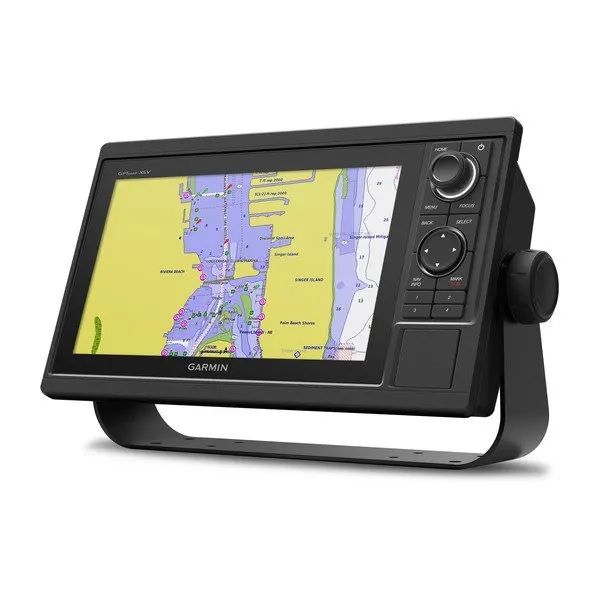

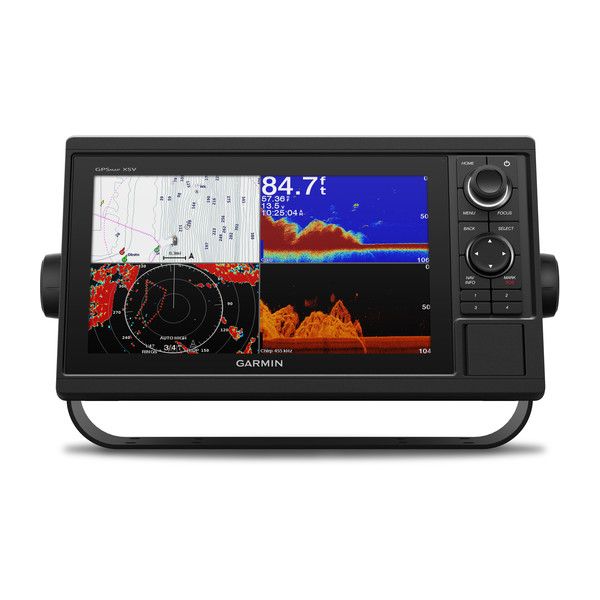

Experience an advanced all-in-one solution with our 10” GPSMAP® 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars. The combo also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates, and more. Garmin Quickdraw™ Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras, and live sonar among multiple units. Plus, there’s NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS, and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument, and wireless remote controls (sold separately). Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect™ online network. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.
Features:
- Large, bright 10” screen with keypad interface and multifunction control knob

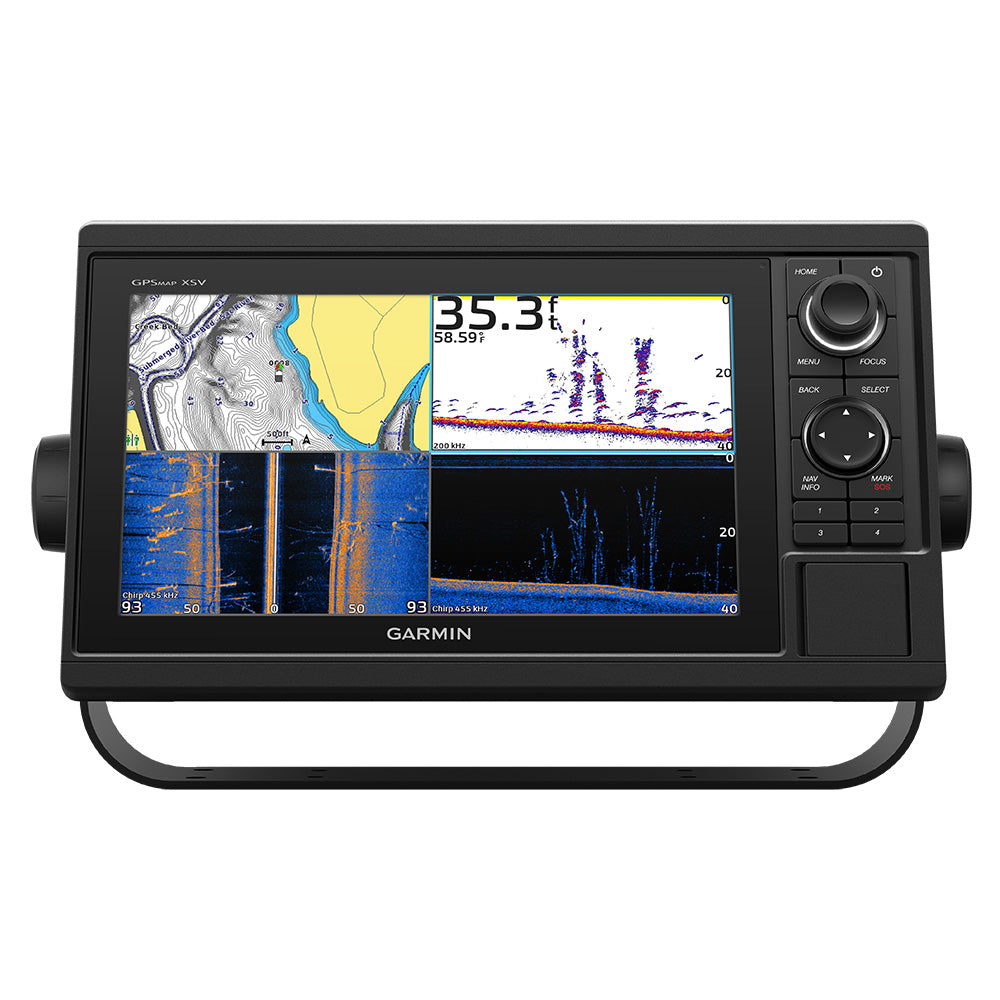

- Built-in support for Garmin CHIRP sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars (transducers sold separately)
- Supports Panoptix™ and LiveScope™ sonar products (transducers sold separately)
- Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, there’s support for optional Garmin Navionics Vision+™ premium map content
- Built-in Wi-Fi® technology capabilities for the ActiveCaptain® app
- See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway
- Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS, and other sensors

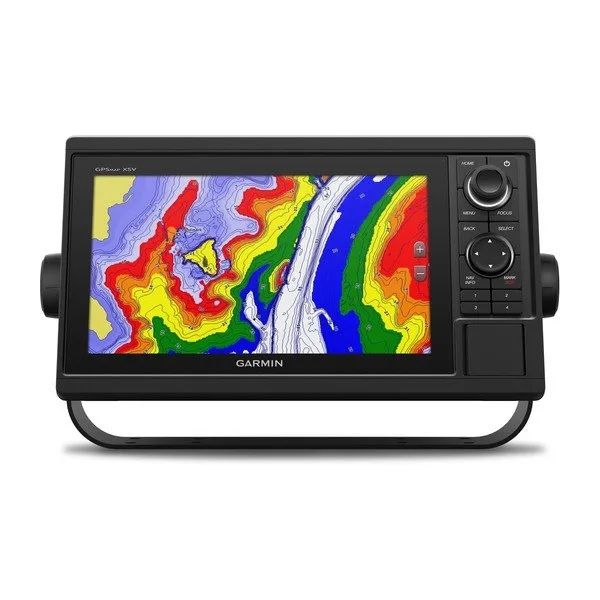

- Includes Quickdraw Contours map drawing software

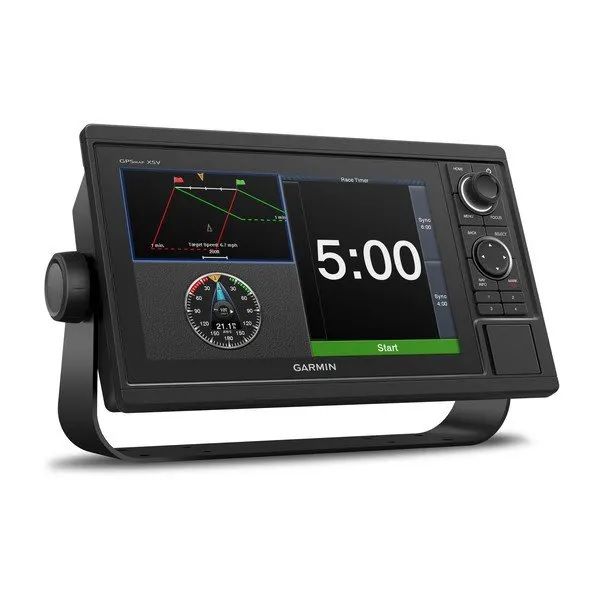

- Built-in Garmin SailAssist™ features include laylines, race features, set and drift, wind data, and more
- Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument, and remote controls (sold separately)
What's In The Box?
- Chartplotter
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable
- Bail mount with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- GPSMAP x2 chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada
Specifications
Specifications
Identification
| MPN | 010-01740-50 |
|---|---|
| Barcode | 753759285203 |
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 10.1" |
Display
| Display Type | WSVGA |
|---|---|
| Resolution | 1024 x 600 |
| Brightness | - |
| Input | Keyed (buttons) |
Navigation
| GPS / GNSS | - |
|---|---|
| Update Rate | - |
| Preloaded Charts | Garmin Navionics+ |
| Chart Compatibility | - |
| Card Slots | 2x SD (up to 1 TB each) |
| Internal Storage | - |
| Waypoints / Routes / Tracks | 5,000 / 100 / 50 |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | - |
| Down Imaging | - |
| Side Imaging | - |
| Transducer Port | - |
| Included Transducer | No |
Connectivity
| NMEA 2000 | Compatible |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | - |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Video In / Out | - |
Dimensions
| Unit Dimensions (W x H x D) | 12.5" x 7.3" x 3.2" (317 x 185 x 83 mm) |
|---|---|
| Dimensions with Bracket | 13.7" x 7.9" x 3.7" (348 x 201 x 95 mm) |
| Flush Mount Cutout | - |
| Mounting Options | - |
| Weight | 4.1 lb (1.85 kg) |
Electrical
| Power Input | 10–32 VDC |
|---|---|
| Power Consumption / Current Draw | 1.9 A typical / 2.7 A max @ 12 VDC (32.4 W max) |
Additional
| Water Rating | IPX7 |
|---|---|
| Compass-Safe Distance | 25.5" (65 cm) |
| Operating Temperature | 5° to 122° F (-15° to 50° C) |
| Country of Origin | - |
