Discontinued

Garmin | SKU: GAR/010-02365-03

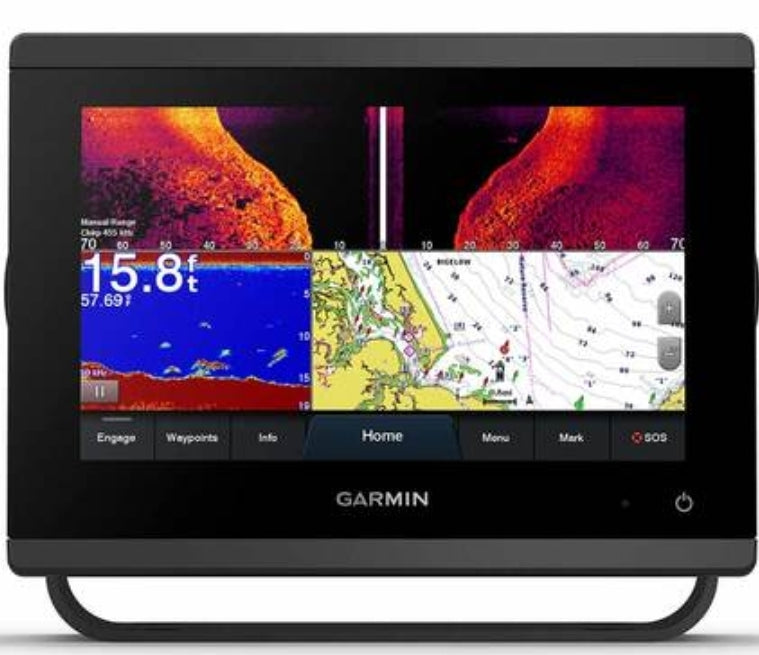

Garmin GPSMAP® 743xsv Combo GPS/Fishfinder BlueChart G3

Name: Garmin GPSMAP® 743xsv Combo GPS/Fishfinder BlueChart G3
Brand: Garmin
SKU: GAR/010-02365-03
Price: 1199.99 USD
Availability: OutOfStock

$1,199⁹⁹

Shipping calculated at checkout.

Description

Specifications

Identification

MPN	010-02365-03
Barcode	753759250461

General

Unit Type	Chartplotter/Fishfinder Combo
Screen Size	7.0"

Display

Display Type	WSVGA IPS
Resolution	1024 x 600
Brightness	-
Input	Touchscreen

Navigation

GPS / GNSS	GPS, GLONASS, Galileo (WAAS)
Update Rate	10 Hz
Preloaded Charts	BlueChart g3, LakeVü g3
Chart Compatibility	-
Card Slots	2x microSD (32 GB max each)
Internal Storage	-
Waypoints / Routes / Tracks	5,000 / 100 / 50

Sonar

Built-In Sonar	Yes
Sonar Power	1 kW RMS (CHIRP), 500 W RMS (ClearVü/SideVü)
CHIRP / Traditional	CHIRP, traditional (50/200, 77/200, 83/200 kHz)
Down Imaging	ClearVü (260/455/800 kHz; UHD 800 kHz)
Side Imaging	SideVü (UHD 1,200 kHz)
Transducer Port	1x 12-pin
Included Transducer	No

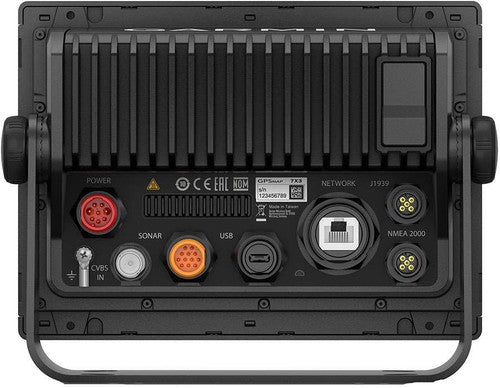

Connectivity

NMEA 2000	Compatible
NMEA 0183	1 in / 1 out
J1939	Compatible
Ethernet / Network	1 Garmin Marine Network port
Wi-Fi	Yes
Bluetooth	Yes
Video In / Out	1 BNC composite in

Dimensions

Unit Dimensions (W x H x D)	7.6" x 5.5" x 2.9" (192 x 140 x 74 mm)
Dimensions with Bracket	7.9" x 6.2" x 4.0" (200 x 156 x 101 mm)
Flush Mount Cutout	-
Mounting Options	Bail, flush, flat
Weight	2.8 lb (1.3 kg)

Electrical

Power Input	10–32 VDC
Power Consumption / Current Draw	1.18 A typical / 2.96 A max @ 12 VDC

Additional

Water Rating	IPX7
Compass-Safe Distance	13.8" (35 cm)
Operating Temperature	5° to 131° F (-15° to 55° C)
Country of Origin	-

Reviews (0)

In The Box

In The Box:

- GPSMAP 743xsv chartplotter
- microSD™ card preinstalled
- Power cable
- NMEA 2000® T-connector
- NMEA 2000 drop cable (2 meters)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective co

Package Dimensions:

Support

Warranty

2yr

* ALL WARRANTY IS THROUGH MANUFACTURE *
