Description
Description

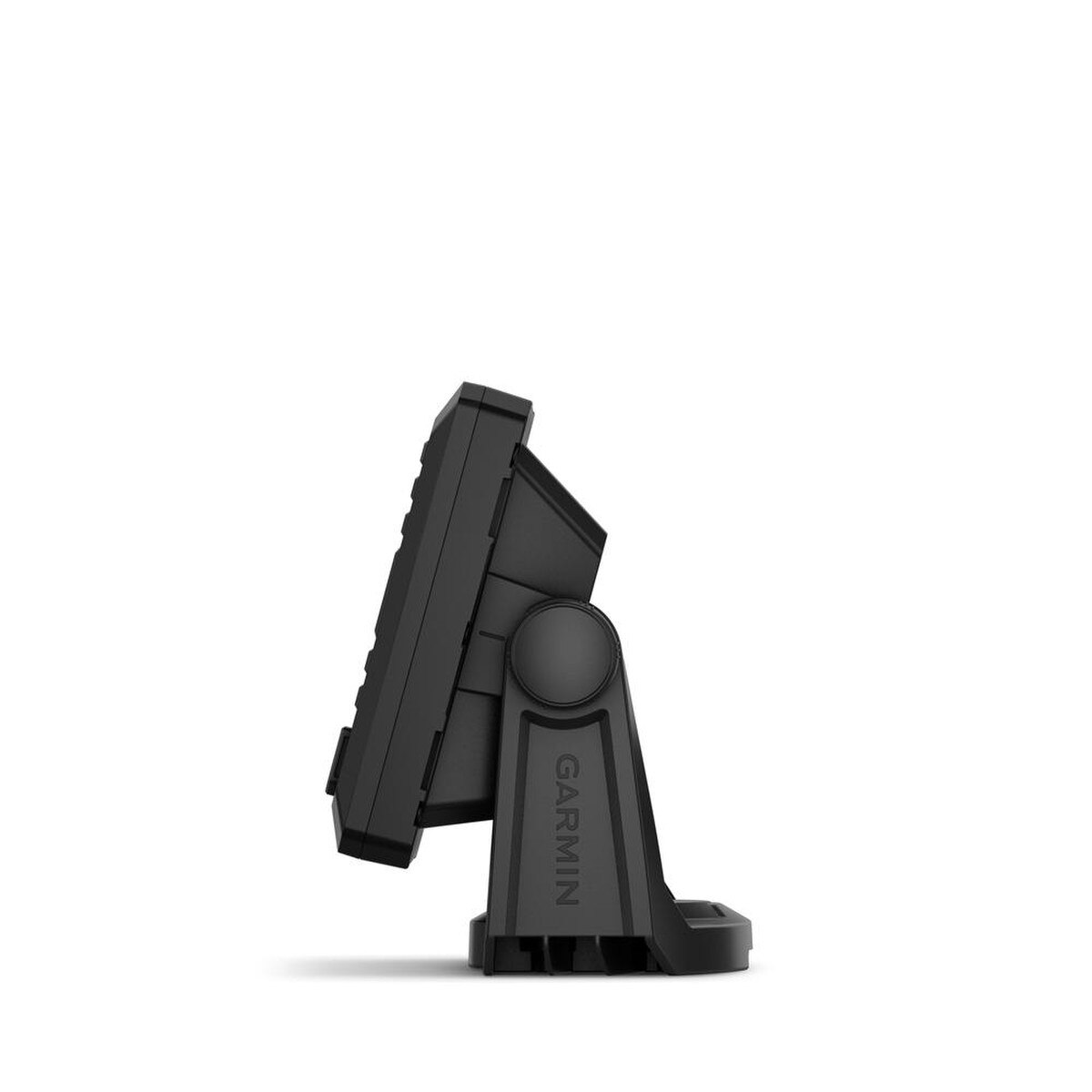

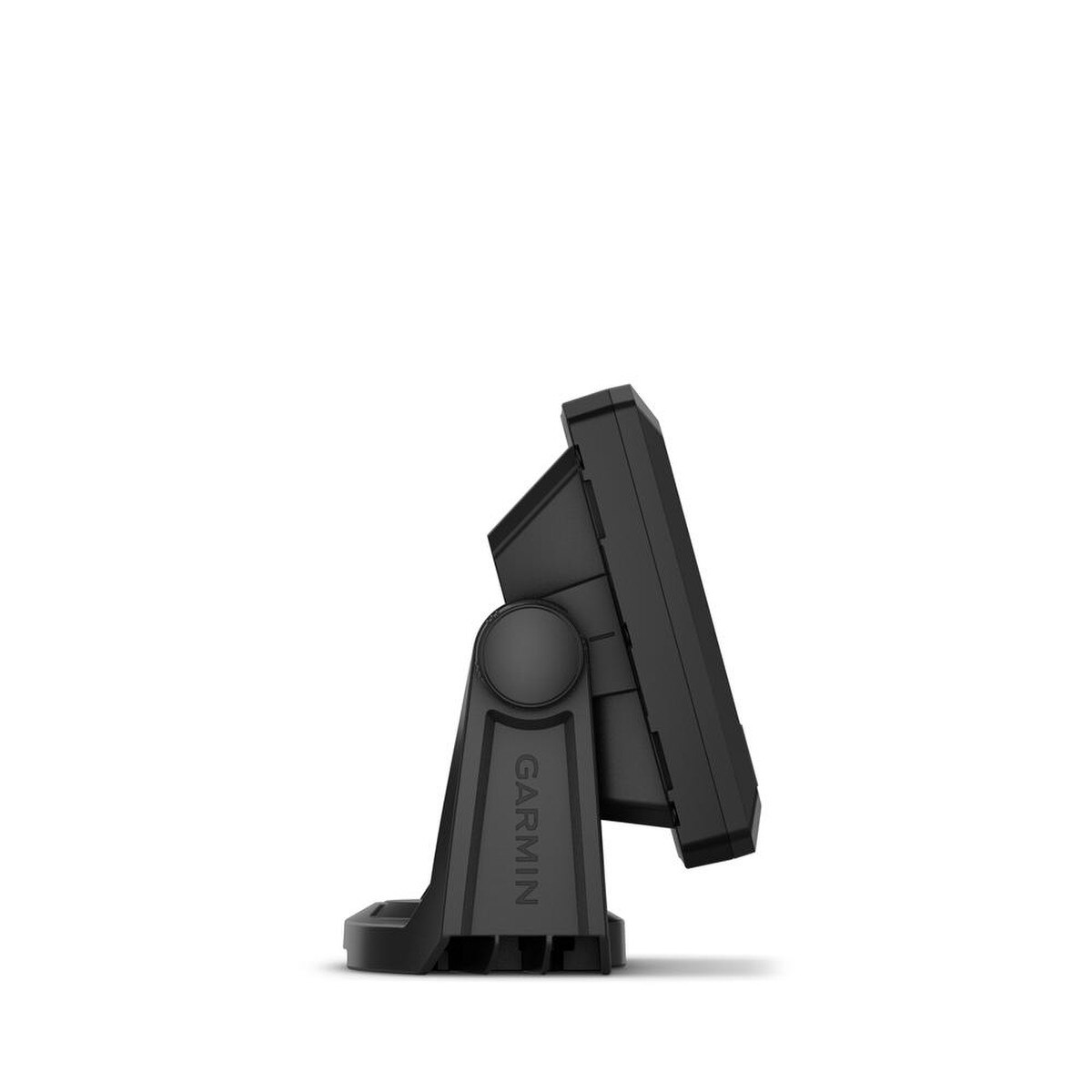

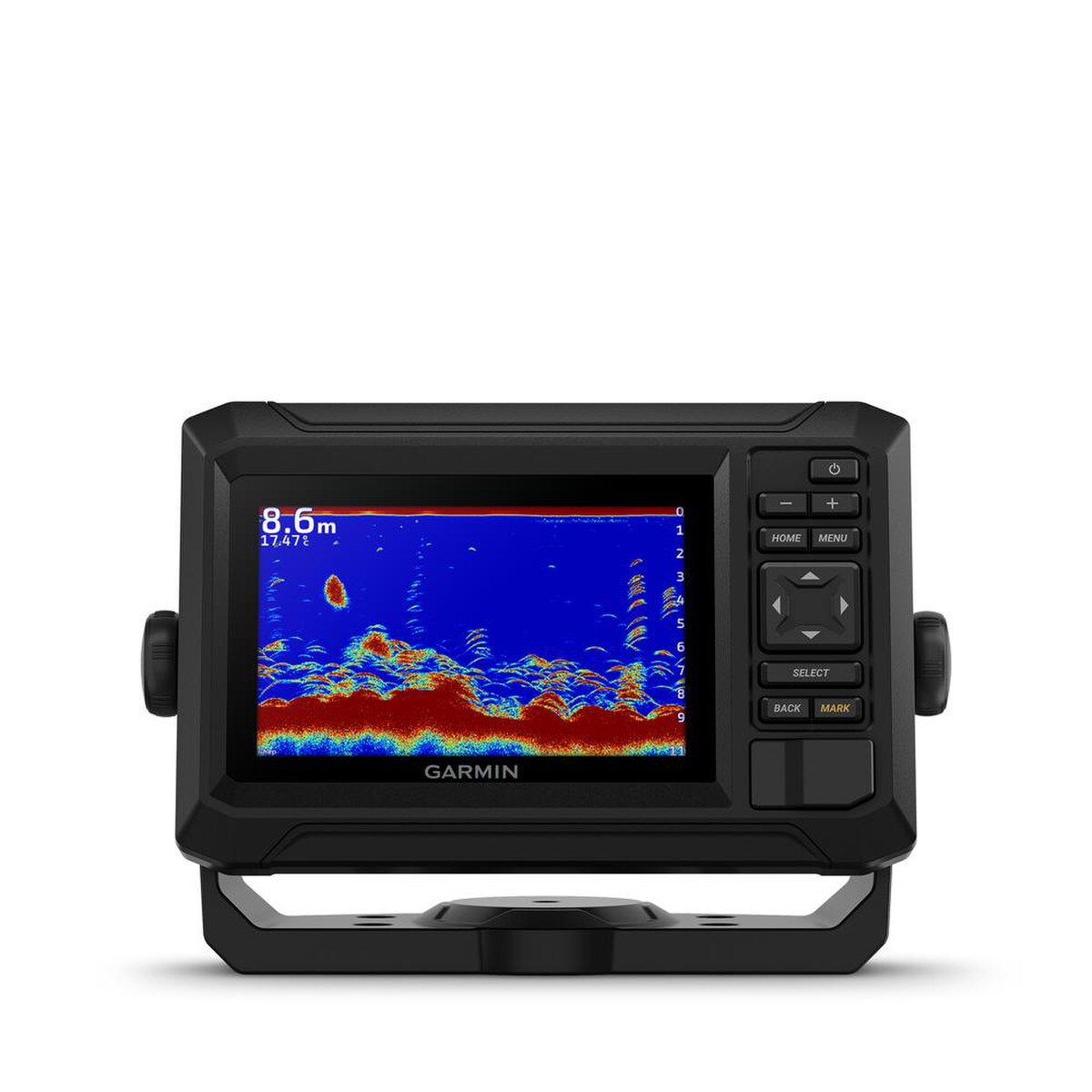

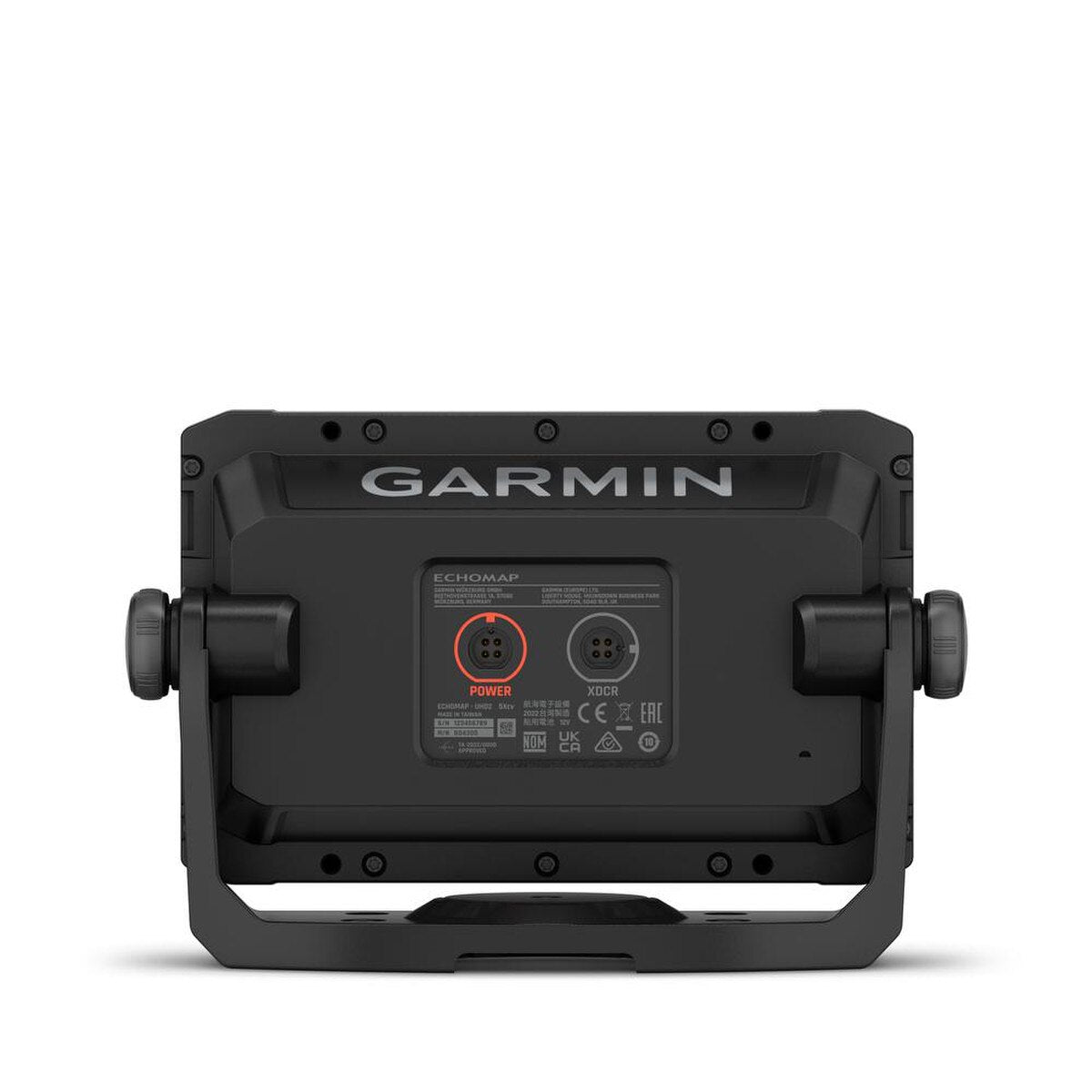

Garmin ECHOMAP UHD2 55cv, Garmin Navionics+ Canada inland content with GT20-TM transducer
Model: 010-02592-50
- Easy-to-use keyed 5 in chartplotter with a bright, sunlight-readable screen
- Included GT20-TM transducer for Garmin traditional and ClearVüTM scanning sonars
- Preloaded Garmin Navionics+TM mapping with Canada inland content covering thousands of lakes with up to 1 feet contours
Fish like a local with the 5 in or 7 in ECHOMAPTM UHD2 chartplotters. See clear, sharp fish arches with Garmin traditional sonar. Use ClearVüTM scanning sonar featuring vivid color palettes for clear, high-contrast views below your boat. Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+TM mapping with coastal or inland content. Use built-in Wi-Fi(R)(Wi-Fi is a registered trademark of the Wi-Fi Alliance) connectivity to share sonar, waypoints and routes with another compatible Garmin chartplotter (sold separately). You can also pair with the free all-in-one ActiveCaptain(R) app on your compatible smartphone for access to the OneChartTM feature, software updates and more.
Specifications
Specifications
Identification
| MPN | 010-02592-50 |
|---|---|
| Barcode | 753759307059 |
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 5.0" |
Display
| Display Type | WVGA |
|---|---|
| Resolution | 800 x 480 |
| Brightness | - |
| Input | Keyed (buttons) |
Navigation
| GPS / GNSS | - |
|---|---|
| Update Rate | - |
| Preloaded Charts | Garmin Navionics+ Canada Inland |
| Chart Compatibility | - |
| Card Slots | 1x microSD (up to 1 TB) |
| Internal Storage | - |
| Waypoints / Routes / Tracks | - |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | 500 W RMS |
| CHIRP / Traditional | CHIRP (50/77/83/200 kHz) |
| Down Imaging | ClearVü (260/455/800 kHz) |
| Side Imaging | - |
| Transducer Port | - |
| Included Transducer | GT20-TM |
Connectivity
| NMEA 2000 | Compatible |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | - |
| Wi-Fi | Yes |
| Bluetooth | - |
| Video In / Out | - |
Dimensions
| Unit Dimensions (W x H x D) | 7.4" x 4.8" x 2.4" (188 x 122 x 62 mm) |
|---|---|
| Dimensions with Bracket | 8.3" x 5.6" x 3.9" (212 x 143 x 100 mm) |
| Flush Mount Cutout | - |
| Mounting Options | - |
| Weight | 1.1 lb (0.5 kg) |
Electrical
| Power Input | 9–18 VDC |
|---|---|
| Power Consumption / Current Draw | 0.6 A typical / 0.7 A max @ 12 VDC |
Additional
| Water Rating | IPX7 |
|---|---|
| Compass-Safe Distance | 3" (7.6 cm) |
| Operating Temperature | 5° to 131° F (-15° to 55° C) |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2yr
* ALL WARRANTY IS THROUGH MANUFACTURE *
