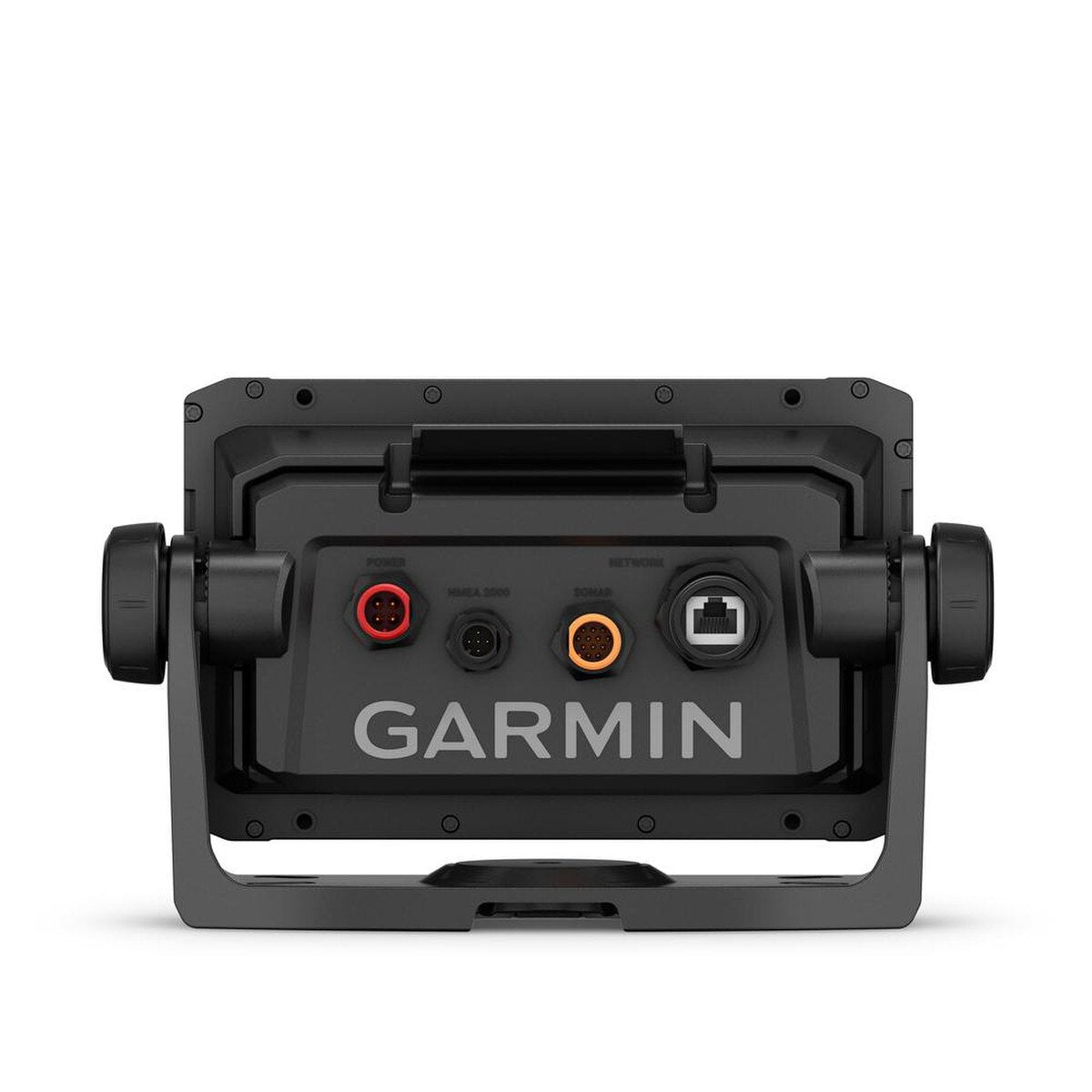

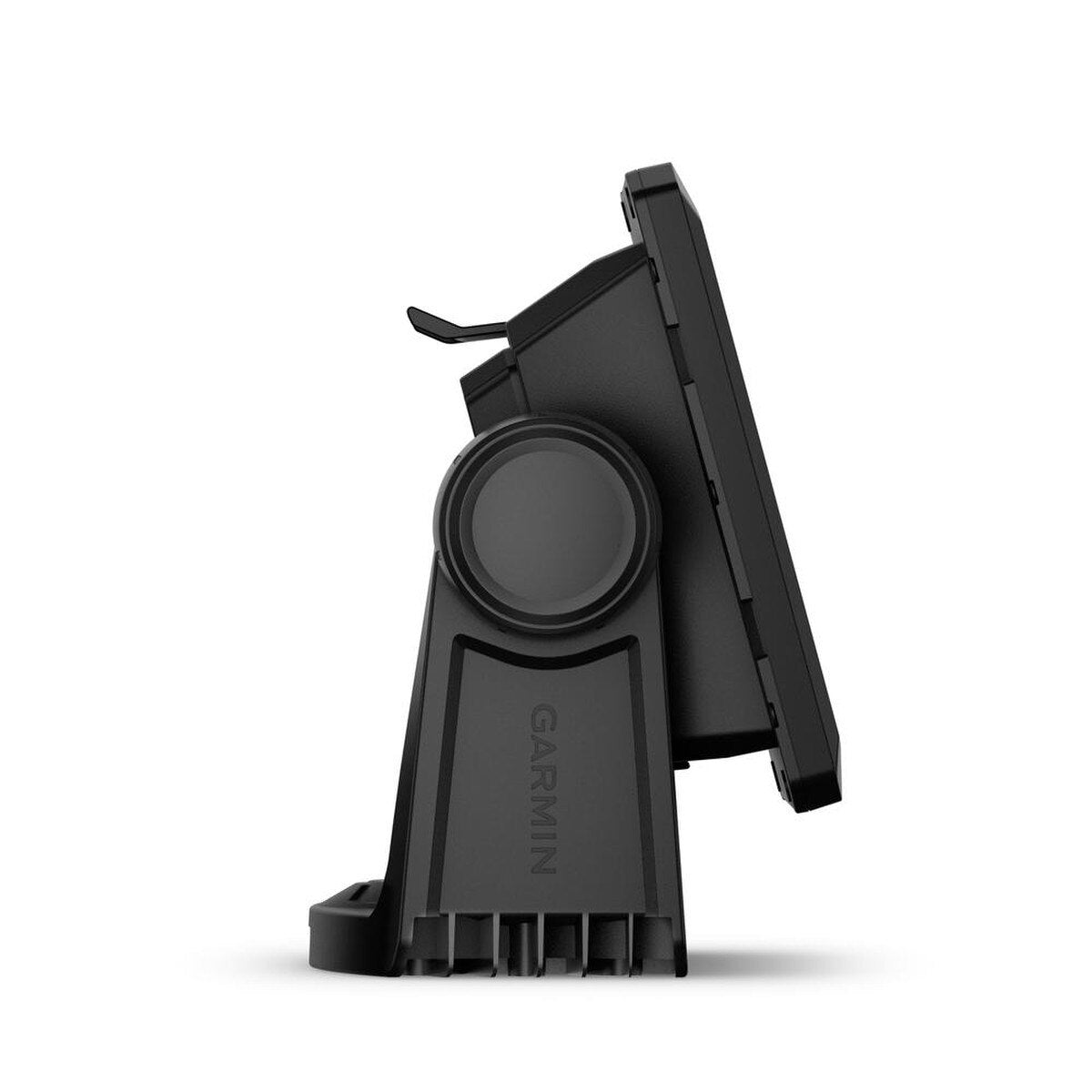

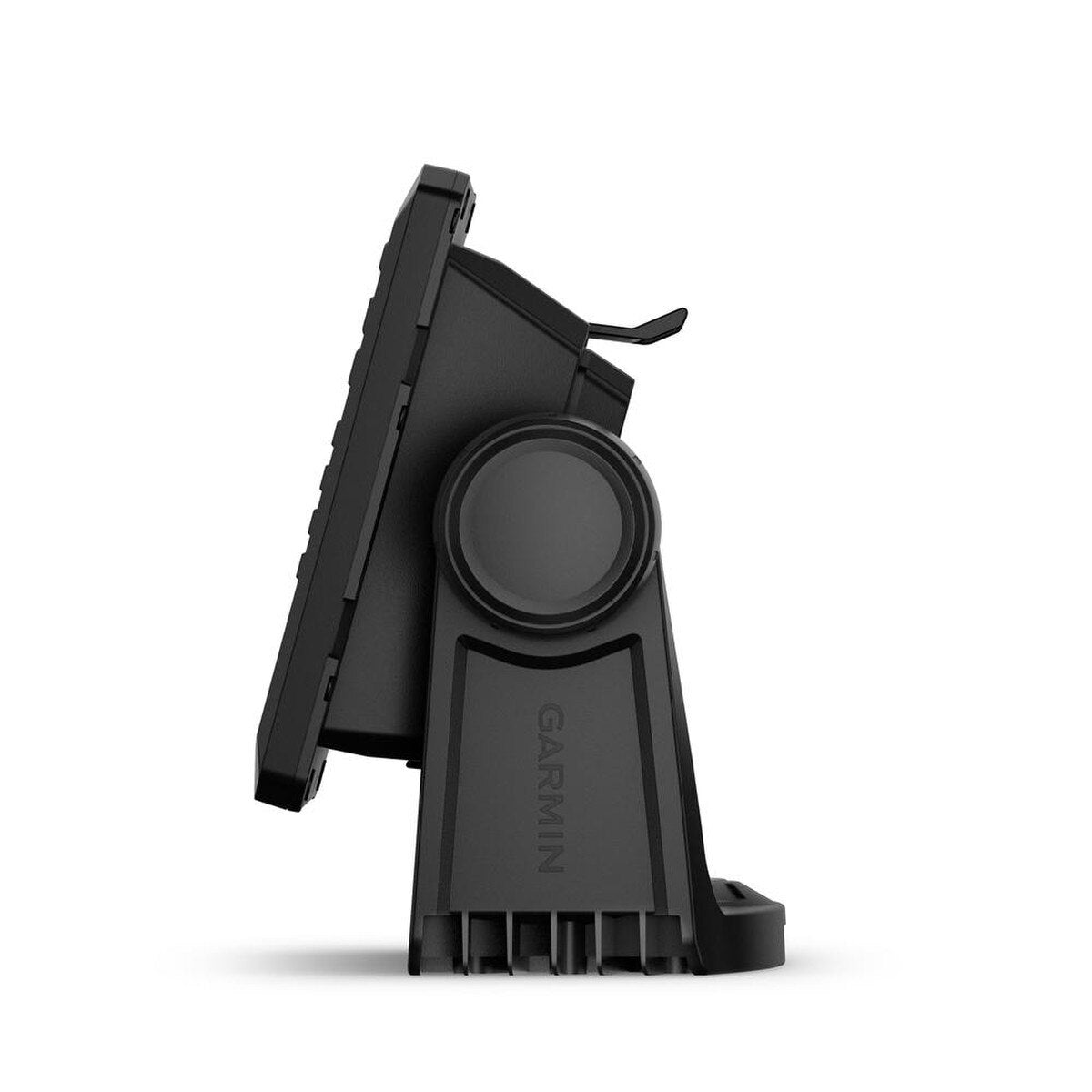

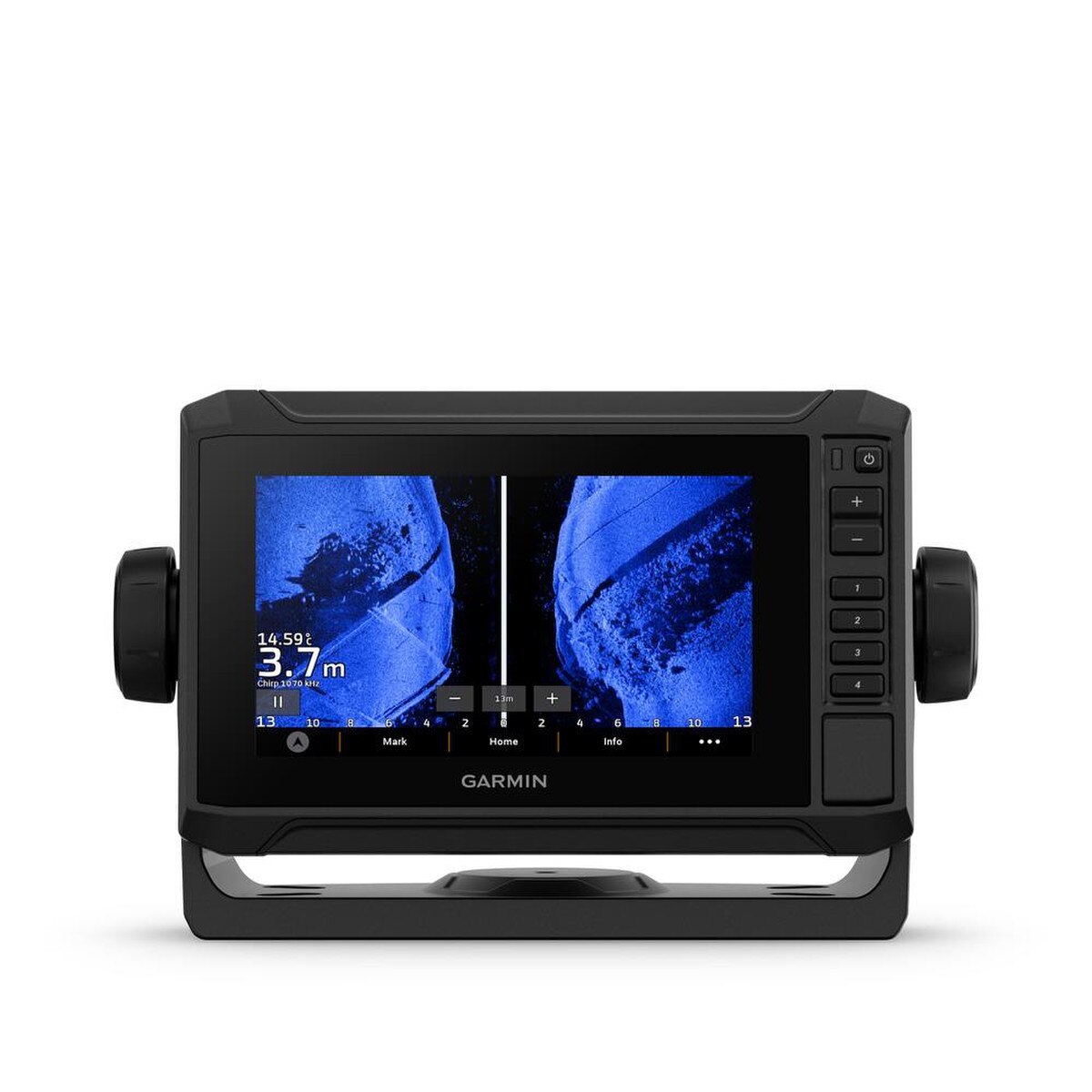

Garmin ECHOMAP UHD2 65sv Canada Inland and Coastal w/ GT54 Transducer

SKU: GAR/010-02682-00

$899⁹⁹

Options

Garmin Authorized Dealer

Description

KNOW THE WATER BETTER THAN A LOCAL

When it comes to catching more fish, they say, “Talk to a local.” With the ECHOMAP UHD2 chartplotter, which offers our best-in-class sonar and mapping and premium touchscreen display with keyed-assist, you’ll know the water even better than they do.

The bright 6”, 7” or 9” touchscreen display with keyed-assist is user-friendly and easy to read.

Good things come in threes. Three sonar types, that is: Garmin traditional, ClearVü^™ and SideVü^™ sonars.

Improved detail? Check. Distinguished targets? Yep. That’s the beauty of high-contrast vivid color palettes.

If you’re running another ECHOMAP UHD2 chartplotter, you can wirelessly share sonar, waypoints and routes.

Specifications

Identification

MPN	010-02682-00
Barcode	753759307837

General

Unit Type	Chartplotter/Fishfinder Combo
Screen Size	6.2"

Display

Display Type	WVGA
Resolution	800 x 480
Brightness	-
Input	Touchscreen

Navigation

GPS / GNSS	-
Update Rate	-
Preloaded Charts	Garmin Navionics+ Canada Inland and Coastal
Chart Compatibility	-
Card Slots	1x microSD (up to 1 TB)
Internal Storage	-
Waypoints / Routes / Tracks	-

Sonar

Built-In Sonar	Yes
Sonar Power	500 W RMS
CHIRP / Traditional	CHIRP (50/77/83/200 kHz)
Down Imaging	ClearVü (260/455/800/1000/1200 kHz)
Side Imaging	SideVü (260/455/800/1000/1200 kHz)
Transducer Port	-
Included Transducer	GT54

Connectivity

NMEA 2000	Compatible
NMEA 0183	-
J1939	-
Ethernet / Network	-
Wi-Fi	Yes
Bluetooth	-
Video In / Out	-

Dimensions

Unit Dimensions (W x H x D)	8.1" x 5.2" x 2.6" (206 x 131 x 67 mm)
Dimensions with Bracket	9.6" x 6.1" x 3.9" (244 x 155 x 99 mm)
Flush Mount Cutout	-
Mounting Options	-
Weight	1.8 lb (0.8 kg)

Electrical

Power Input	9–18 VDC
Power Consumption / Current Draw	1.53 A typical / 3.2 A max @ 12 VDC

Additional

Water Rating	IPX7
Compass-Safe Distance	11" (28 cm)
Operating Temperature	-4° to 131° F (-20° to 55° C)
Country of Origin	-

Reviews (0)

In The Box

In The Box:

ECHOMAP UHD2
GT54-TM transducer
Power cable
Tilt/swivel mount with quick release cradle
Protective cover
Hardware
Documentation

Package Dimensions:

Available Shipping Methods:

Support

Warranty

2yr

Garmin Marine Warranty

* ALL WARRANTY IS THROUGH MANUFACTURE *
