Description
Description

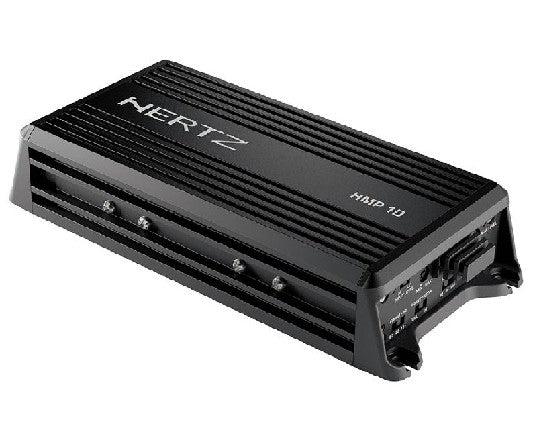

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results. The level of HMP 1 D amplifiers can be remote controlled with the included HRC BM (Hertz Remote Control Bass Management). Connected to the Remote Control plug, this provides extremely precise volume level from the comfort of your seat.
Specifications
Specifications
Identification
| MPN | 78270000 |
|---|---|
| Barcode | 8018823122139 |
Dimensions
| Dimensions (H x W x D) | 1.72" x 8.78" x 3.96" (44 x 223 x 100 mm) |
|---|---|
| Weight | 2.98 lbs (1.35 kg) |
Amplifier
| Amplifier Class | Class D |
|---|---|
| Channels | 1 |
Amplifier Power
| Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD) | 150 W x 1 |
|---|---|
| Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD) | 250 W x 1 |
| Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD) | - |
| Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD) | - |
Amplifier Processing
| Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
|---|---|
| Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs | - |
| Signal-to-Noise Ratio (Manufacturer Rating) | 105 dB (A-weighted, 1 V reference) |
| Damping Factor @ 4 Ω | - |
| Damping Factor @ 2 Ω | - |
| THD+N @ rated power | 0.1% @ 100 Hz, 4 Ω |
| Frequency Response (+0, -1dB) | 10 Hz-500 Hz |
| Input Voltage Range @ RCA Inputs | Low: 0.2-5 V RMS / High: 0.8-20 V RMS |
| Input Impedance | - |
| Remote Level Control | - |
| Remote Level Modes | - |
| Channel Input Mode Switch | - |
| Pass-through Preamp Output | - |
| Source Channel Selection for PreOuts | - |
Amplifier Filters
| Bass Boost EQ | None |
|---|---|
| Output Polarity Switch | - |
| Filter Mode(s): Subwoofer Channel | - |
| Filter Slope(s): Subwoofer Channel | - |
| Filter Frequency Range: Subwoofer Channel | - |
| High-Pass/Low-Pass Full Range Filter | - |
| HP Variable Crossover Frequency Range | - |
| LP Variable Crossover Frequency Range | - |
| Infrasonic Filter | - |
| Detented, Calibrated Filter Potentiometers | - |
Electrical
| Operating Voltage | 11-15 VDC |
|---|---|
| Current Consumption (idle) | - |
| Current Consumption (standby) | - |
| Fuse Rating | 1 x 15 A |
| Recommended Fuse Type(s) | - |
| Minimum Copper Power/Ground Wire Gauge | - |
General
| Water/Dust Protection Rating | IP64 |
|---|---|
| Operating Temperature Range | - |
| Protection Circuits | - |
Warranty/Certifications
| Certifications | ASTM D4329 (UV) and ASTM B117 (salt fog) |
|---|---|
| Warranty | - |
