Discontinued

JL Audio | SKU: JLA/98272

JL Audio M Series 600w 6 Channel Amplifier - M600/6

Name: JL Audio M Series 600w 6 Channel Amplifier - M600/6
Brand: JL Audio
SKU: JLA/98272
Price: 799.99 USD
Availability: OutOfStock

$799⁹⁹

Shipping calculated at checkout.

Description

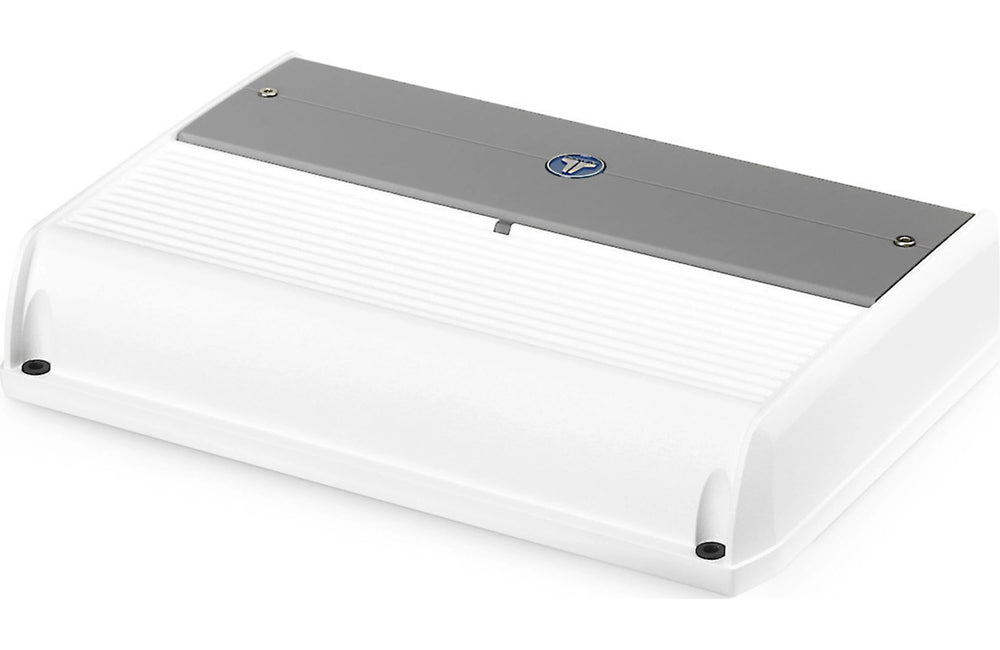

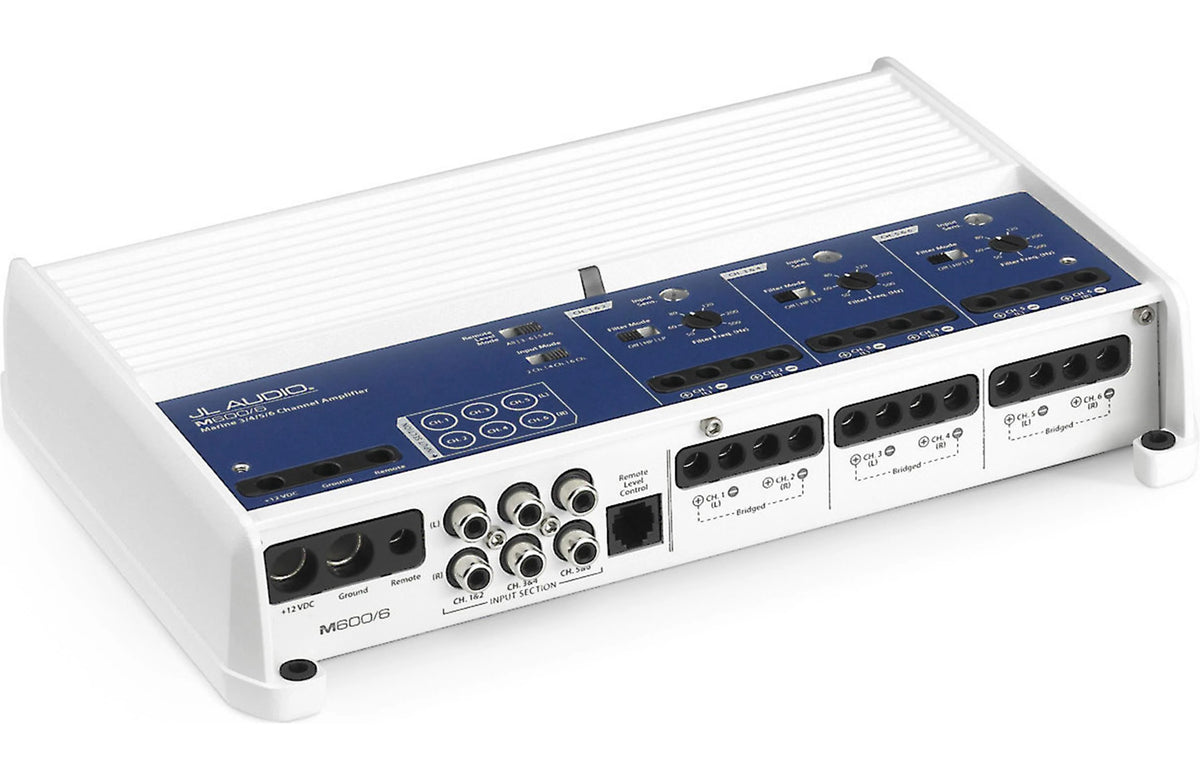

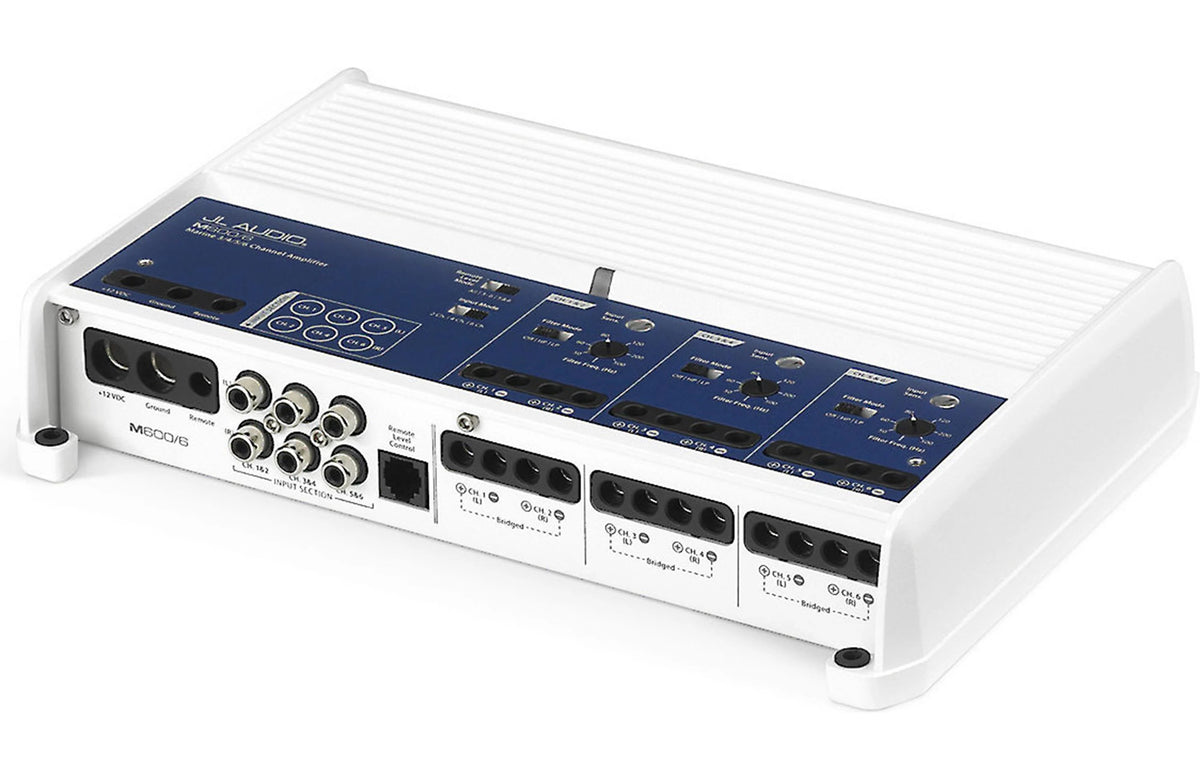

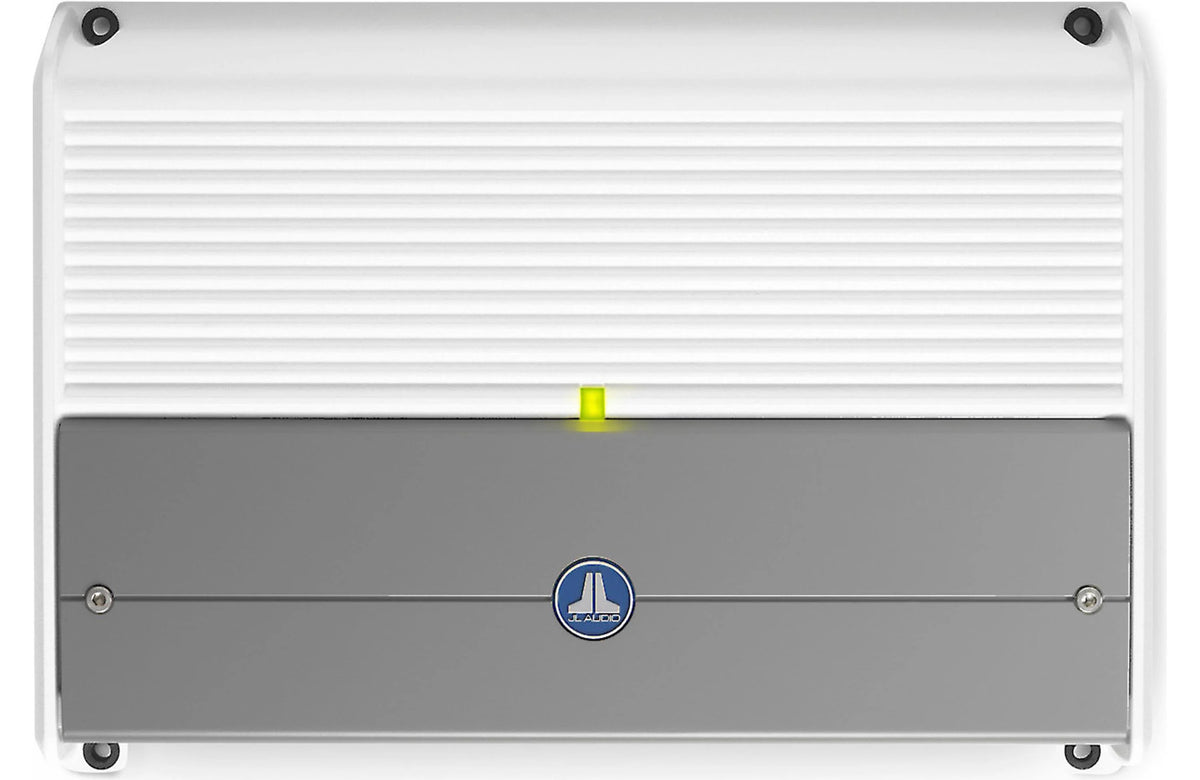

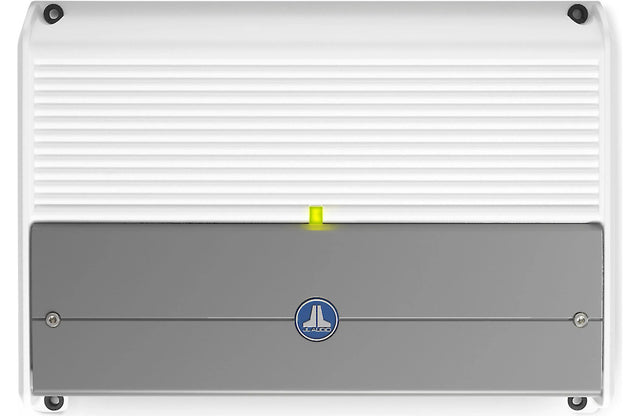

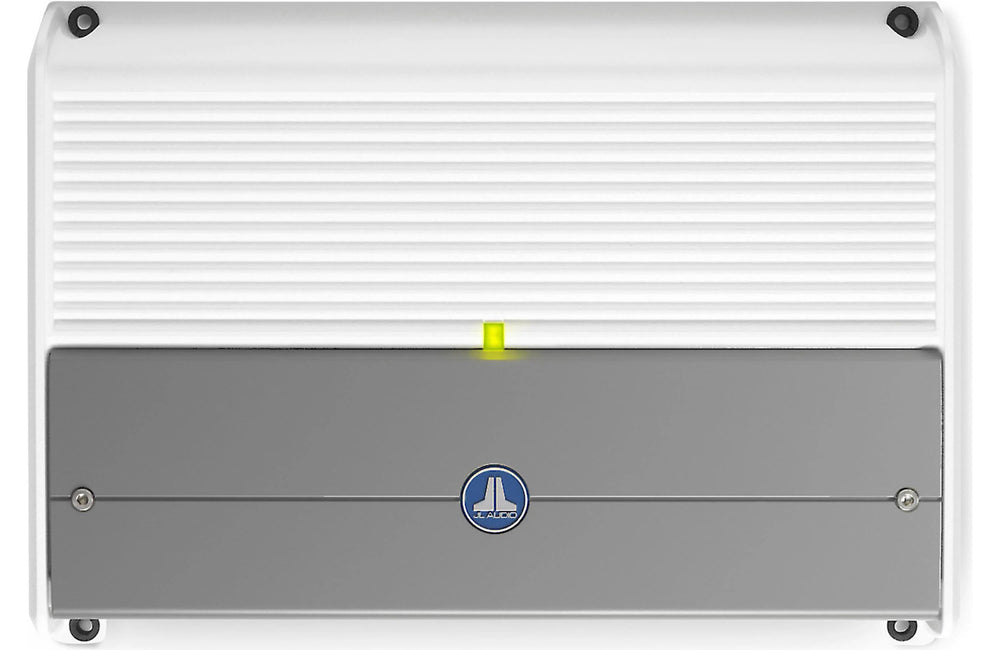

JL Audio's M600/6 marine amp is small — less than 11" wide — but it delivers a massive amount of power from its compact chassis — up to 100 watts from each of its six channels. It owes these impressive specs to JL Audio's Class D NexD™ ultra-high-speed switching design, which eliminates the traditional drawbacks of a Class D amp design to deliver full-bandwidth performance, excellent efficiency, and very low distortion levels.

Great for a variety of applications
You can use this 6-channel amp for a variety of applications. Run three sets of high-performance coaxial or component speakers, or bridge the amp to 3-channel mode to get three subs thumping. Or enjoy the best of both worlds by powering a combination of full-range speakers and subs.

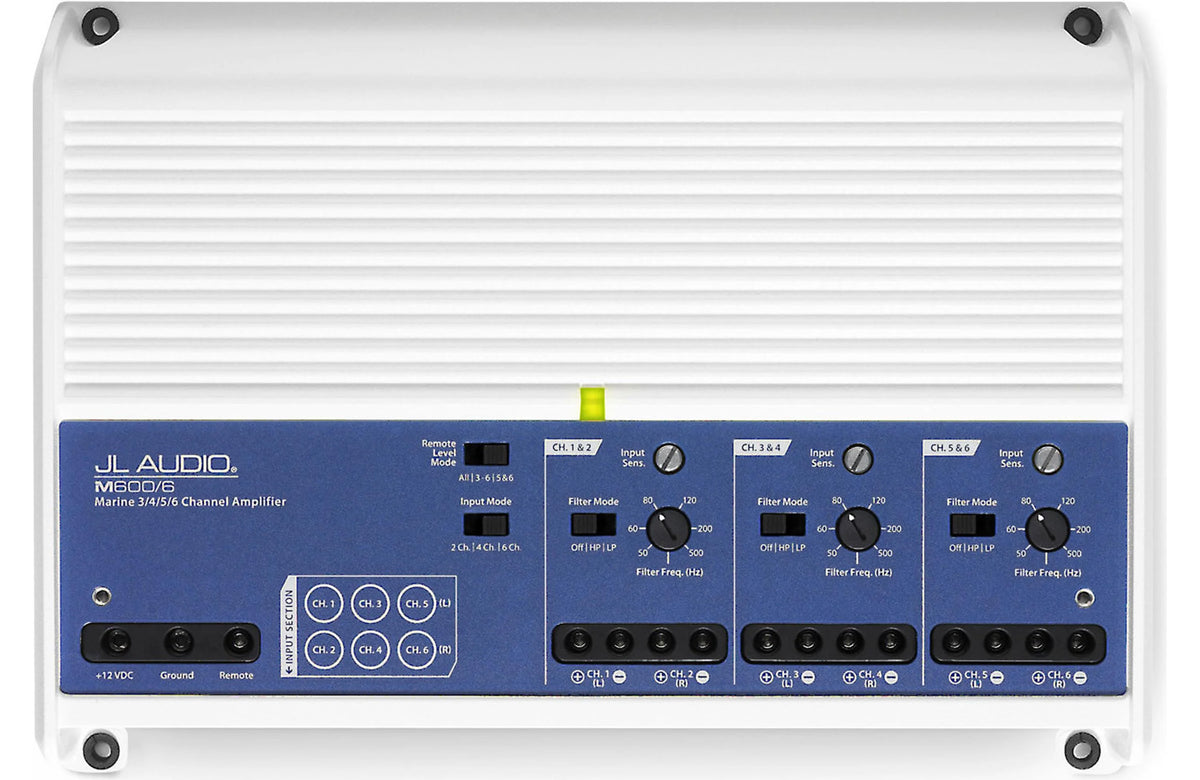

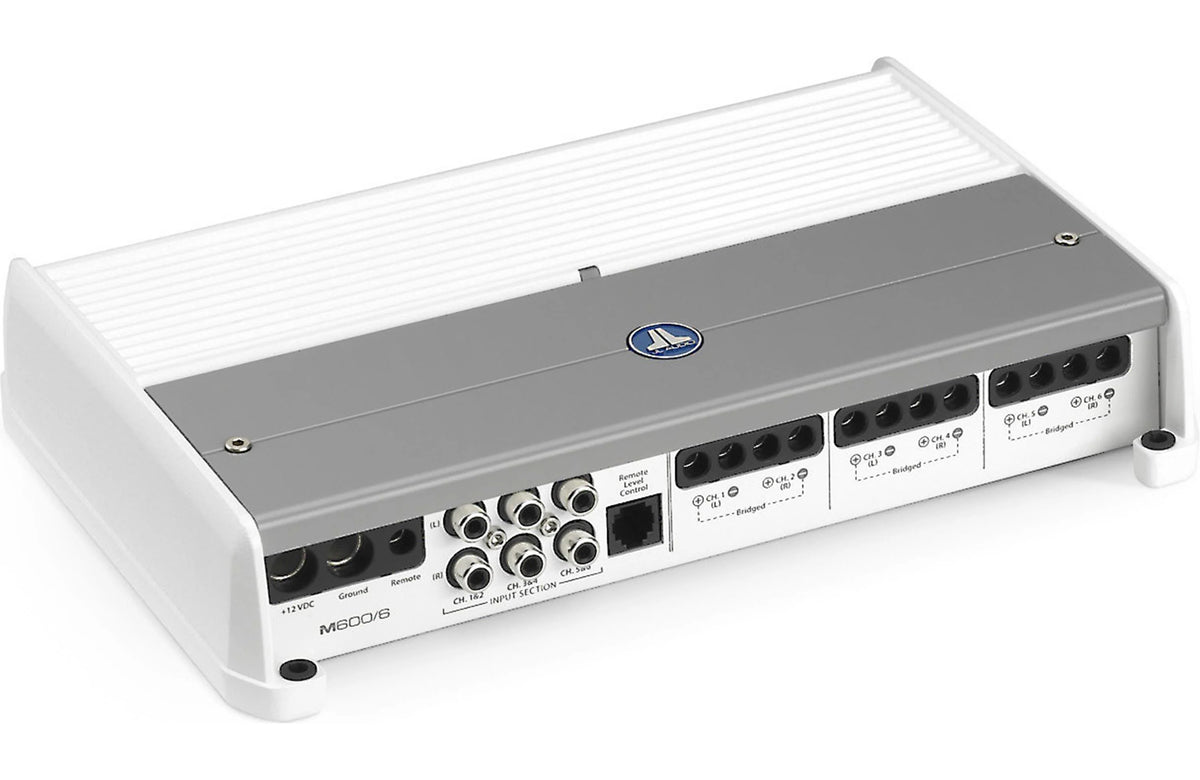

You can run the built-in variable frequency filters in high- or low-pass mode, depending on whether you're powering speakers or subs. JL Audio's optional wired remote lets you adjust the amp's level from the helm. The special powder-coat finishes, the gasketed control cover, and the stainless-steel hardware all protect this amp against the harsh realities of the marine environment.

Specifications

Identification

MPN	98272

Dimensions

Dimensions (H x W x D)	2.05" x 10.23" x 7.09" (52 x 260 x 180 mm)
Weight	-

Amplifier

Amplifier Class	Class D
Channels	6

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	75 W x 6/200 W x 3 (Bridged)
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	100 W x 6
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	60 W x 6/180 W x 3 (Bridged)
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	90 W x 6

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	> 104 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	> 84 dB
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	> 150/50 Hz
Damping Factor @ 2 Ω	> 75/50 Hz
THD+N @ rated power	-
Frequency Response (+0, -1dB)	12 Hz-22 kHz
Input Voltage Range @ RCA Inputs	100 mV - 4 V RMS
Input Impedance	-
Remote Level Control	-
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	None
Output Polarity Switch	-
Filter Mode(s): Channels 1 & 2	Off, Low-Pass or High-Pass
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter Frequency Range: Channels 1 & 2	50 Hz-500 Hz
Filter Mode(s): Channels 3 & 4	Off, Low-Pass or High-Pass
Filter Slope(s): Channels 3 & 4	12 dB/octave
Filter Frequency Range: Channels 3 & 4	50 Hz-500 Hz
Filter Mode(s): Channels 5 & 6	Off, Low-Pass or High-Pass
Filter Slope(s): Channels 5 & 6	12 dB/octave
Filter Frequency Range: Channels 5 & 6	50 Hz-500 Hz
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	-
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	12 VDC negative ground (operates down to 10 V)
Current Consumption (idle)	-
Current Consumption (standby)	-
Fuse Rating	50 A
Recommended Fuse Type(s)	MAXI or AGU
Minimum Copper Power/Ground Wire Gauge	4 AWG wire
