Discontinued

JL Audio | SKU: JLA/98273

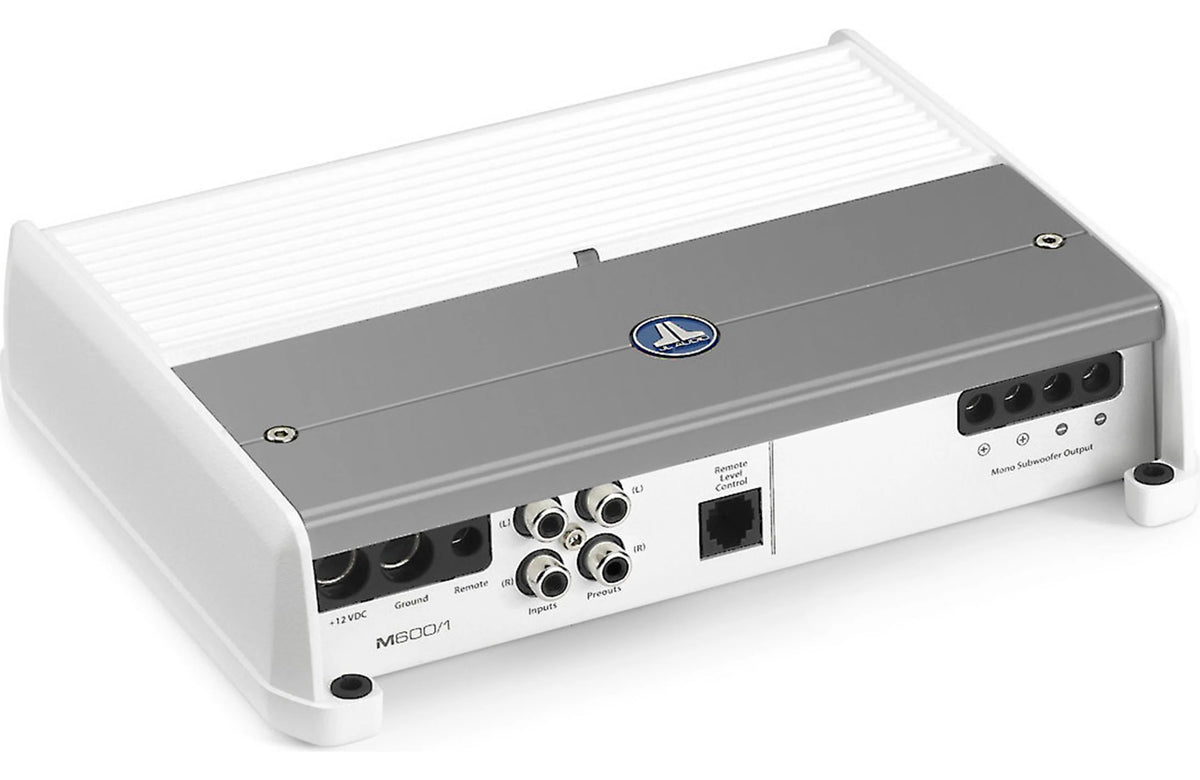

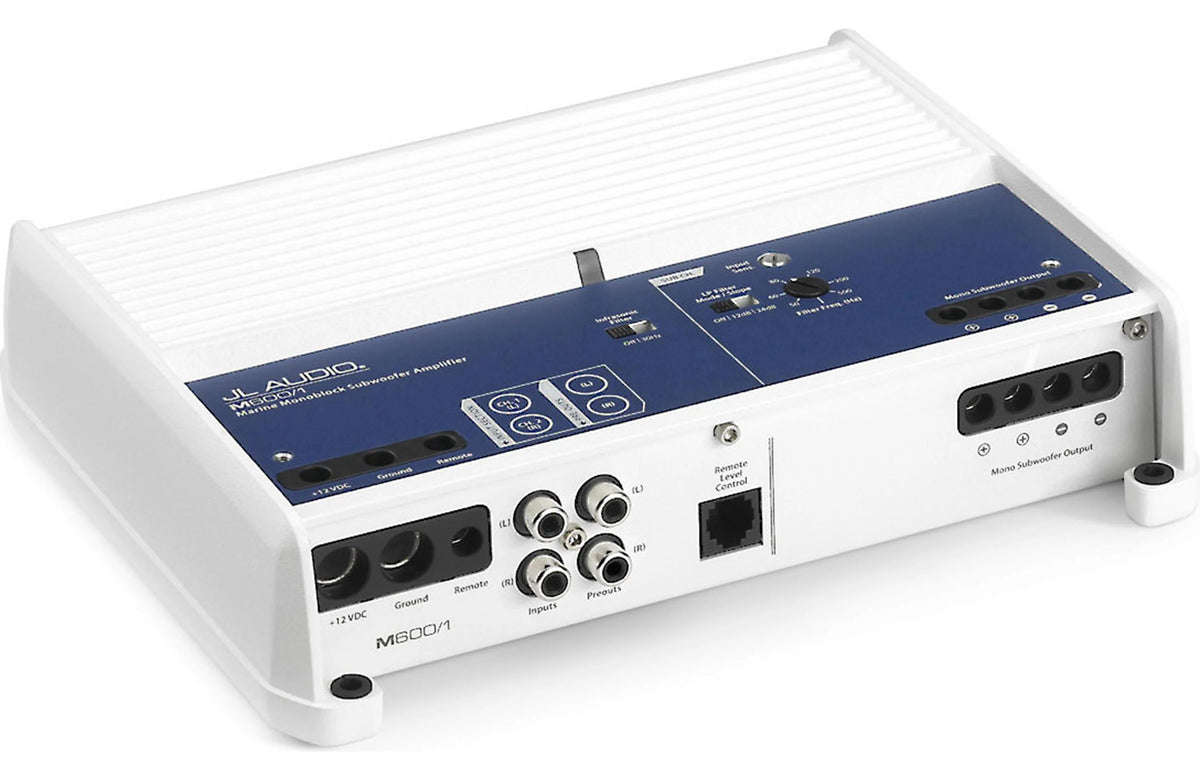

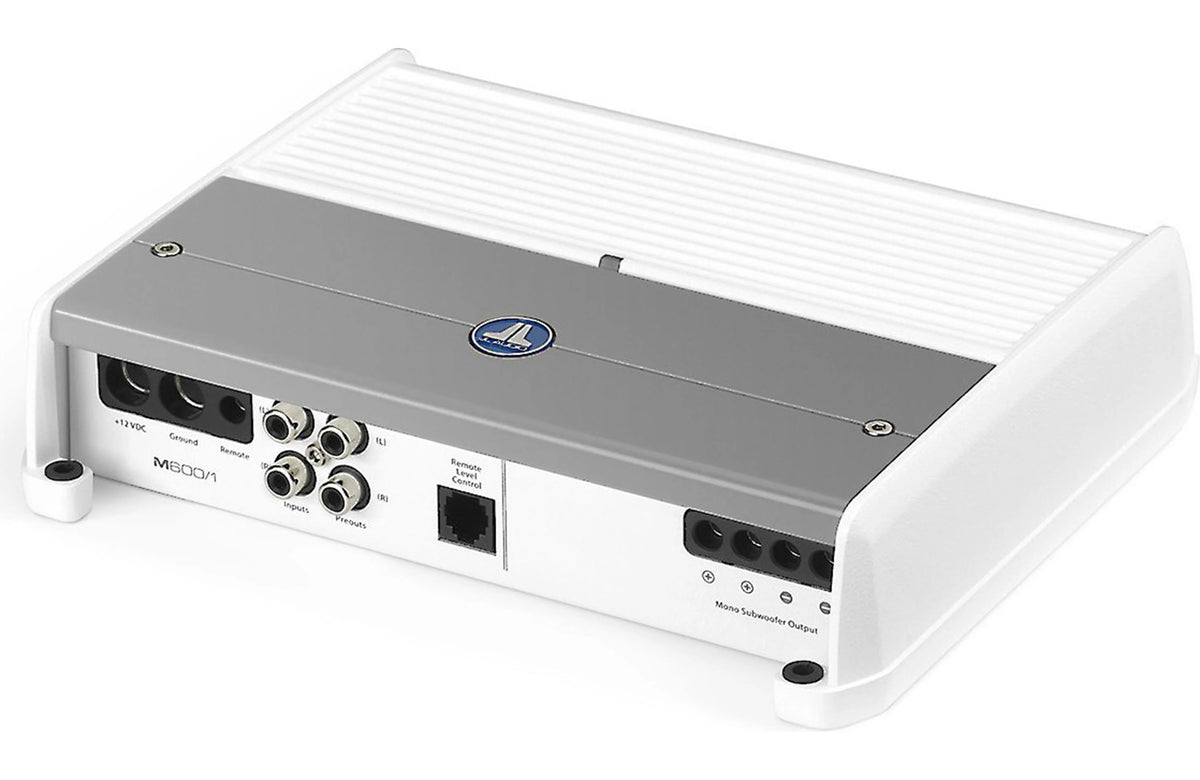

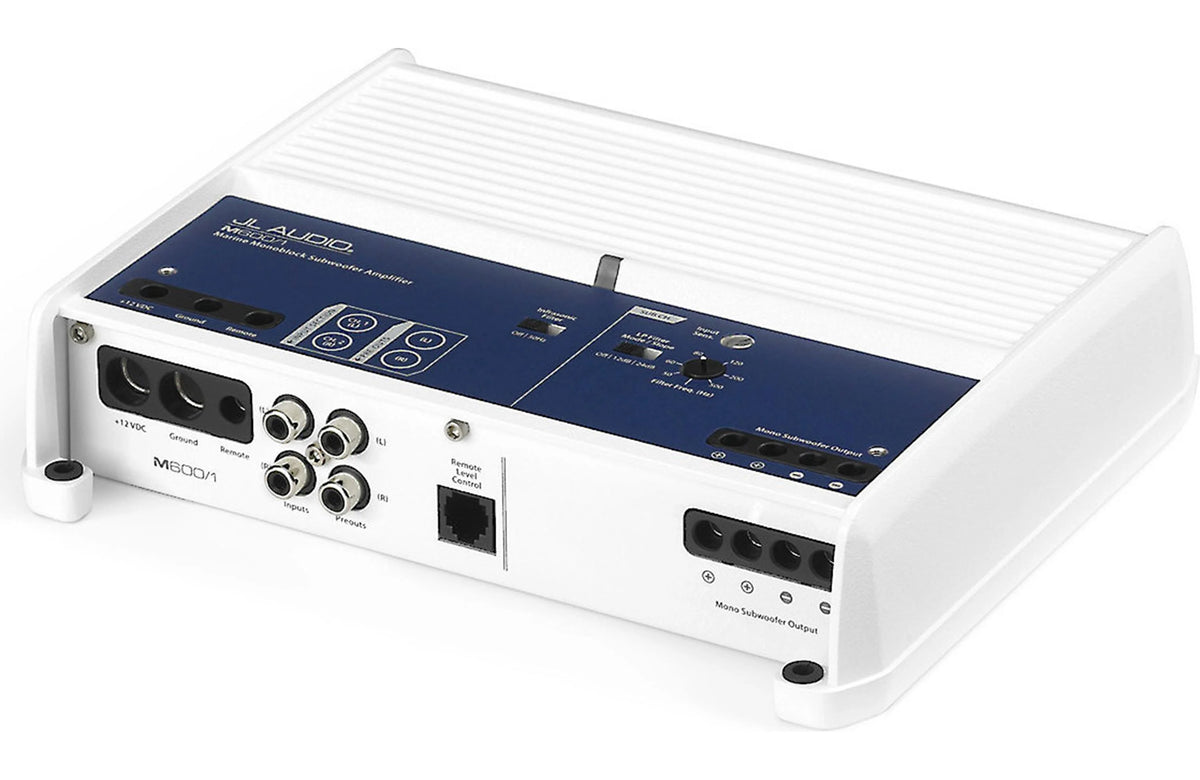

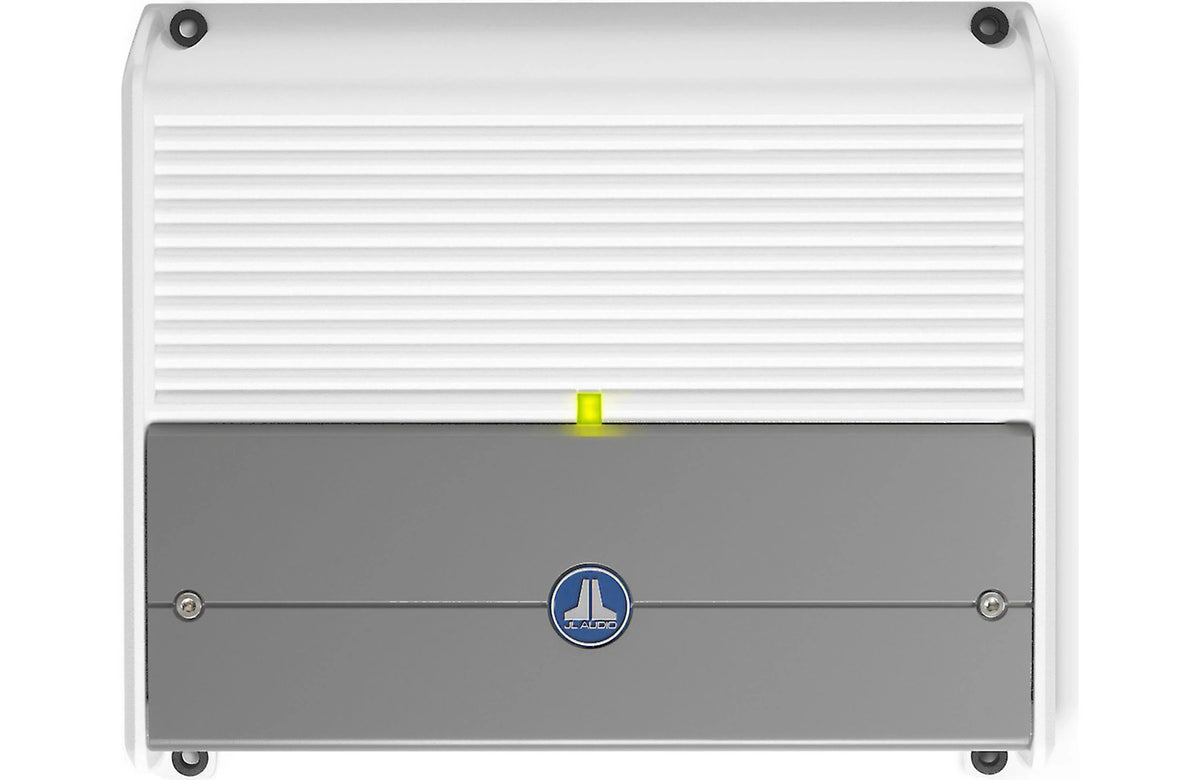

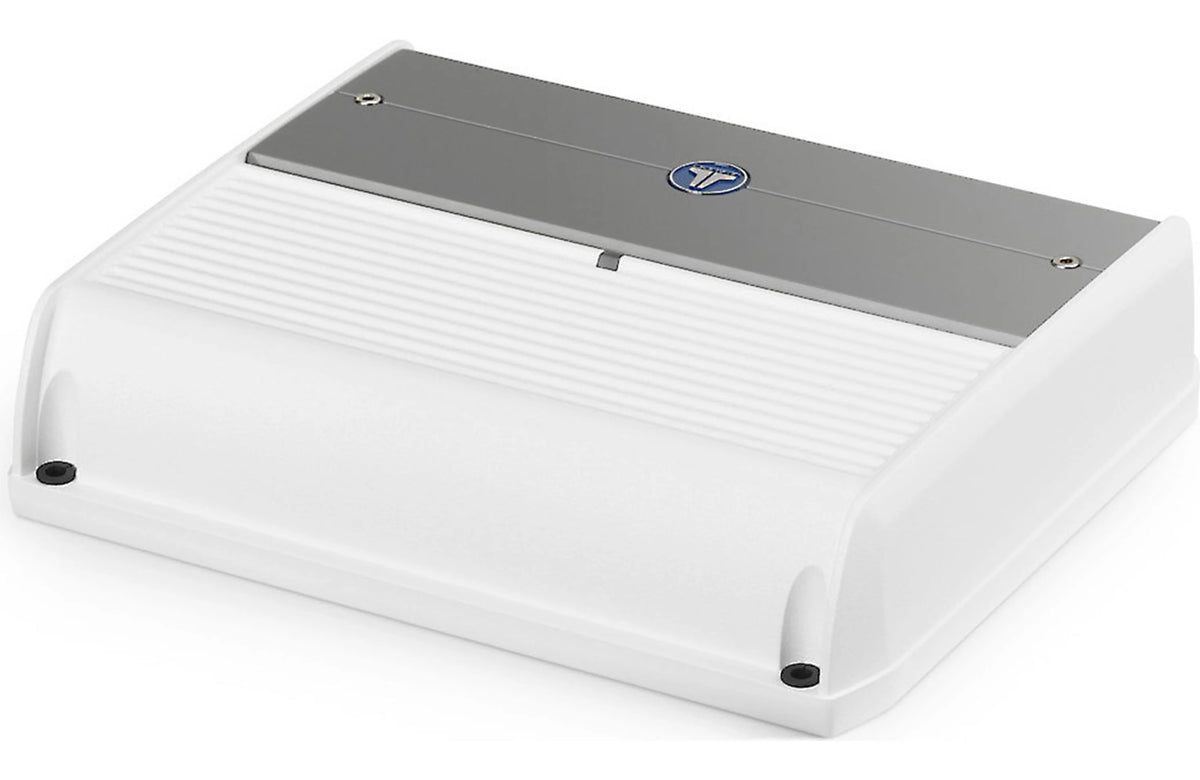

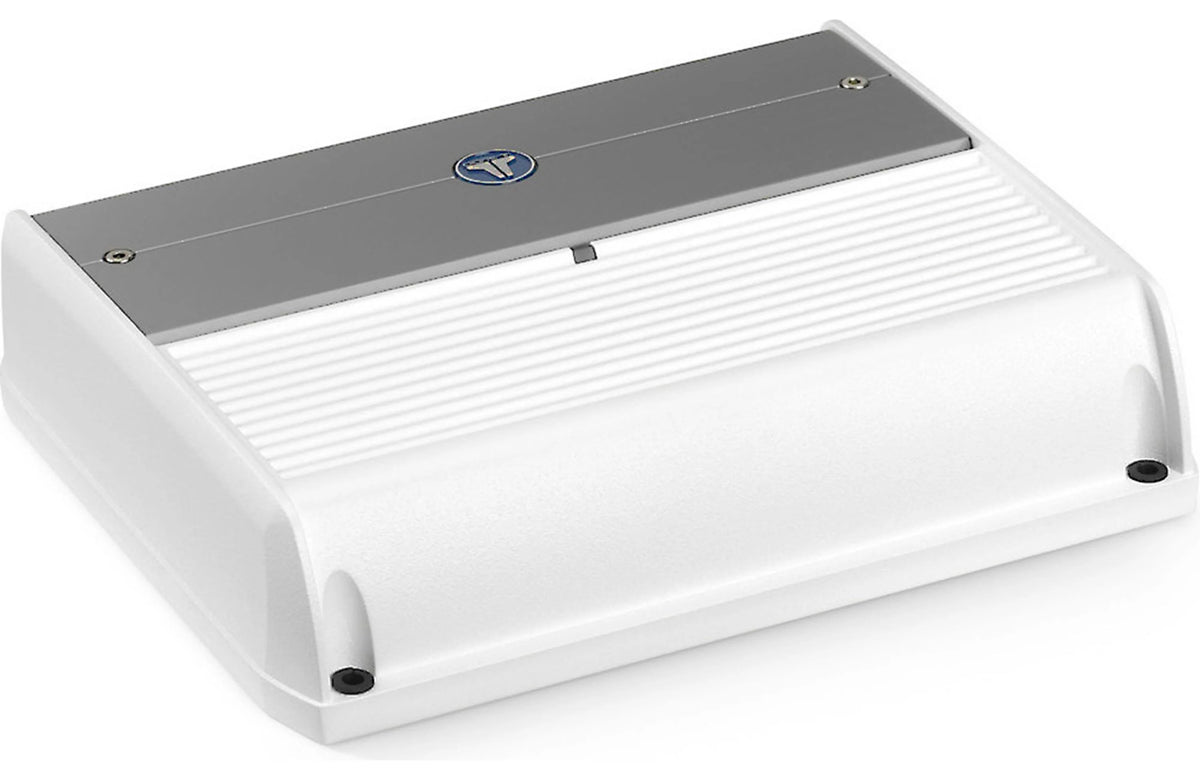

JL Audio M Series 600w Monoblock Subwoofer Amplifier - M600/1

Name: JL Audio M Series 600w Monoblock Subwoofer Amplifier - M600/1
Brand: JL Audio
SKU: JLA/98273
Price: 649.99 USD
Availability: OutOfStock

$649⁹⁹

Shipping calculated at checkout.

Description

JL Audio's M600/1 marine amp is small — less than 9" wide — but it delivers a massive amount of power from its compact chassis — up to 600 watts to a sub at 2 ohms. It owes these impressive specs to JL Audio's Class D NexD™ ultra-high-speed switching design, which eliminates the traditional drawbacks of a Class D amp design to deliver full-bandwidth performance, excellent efficiency, and very low distortion levels.

Great for a variety of applications

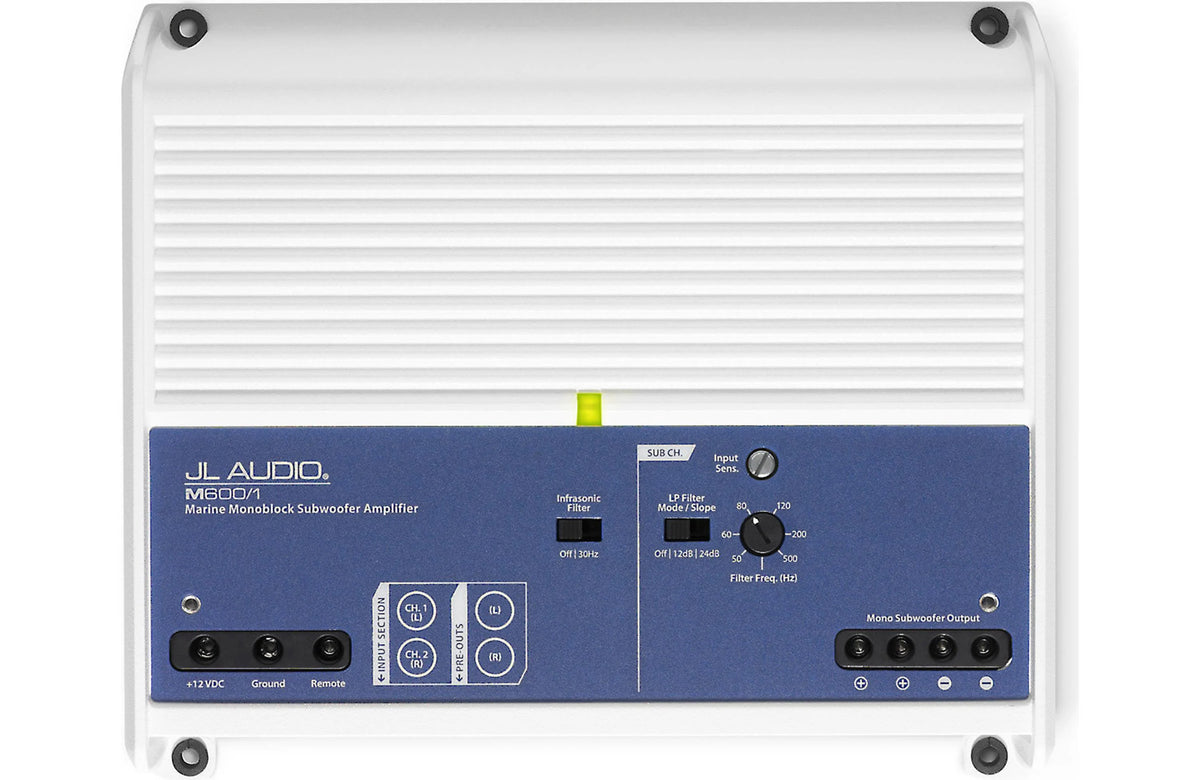

This mono amp is great for bumping up the bass on your pleasure craft — it's perfect for driving a pair of 4-ohm subs. You can run the built-in variable low-pass filters anywhere between 50 to 500 Hz, with a selectable 12 or 24 dB slope, so you can get maximum performance out of your subwoofer setup. A fixed subsonic filter removes extreme low frequencies so your amp and sub play cleaner and louder.

JL Audio's optional wired remote lets you adjust the amp's level from the helm, while the preamp outputs make it easier to get signal to another amplifier in your system. The special powder-coat finishes, the gasketed control cover, and the stainless-steel hardware all protect this amp against the harsh realities of the marine environment.

Specifications

Identification

MPN	98273
Barcode	699440782739

Dimensions

Dimensions (H x W x D)	2.06" x 8.63" x 7.13" (52 x 219 x 181 mm)
Weight	-

Amplifier

Amplifier Class	Class D
Channels	1

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	400 W x 1
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	600 W x 1
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	300 W x 1
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	500 W x 1

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	> 87 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	> 59 dB
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	-
Damping Factor @ 2 Ω	-
THD+N @ rated power	-
Frequency Response (+0, -1dB)	-
Input Voltage Range @ RCA Inputs	100 mV - 4 V RMS
Input Impedance	-
Remote Level Control	Optional HD-RLC
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	None
Output Polarity Switch	-
Filter Mode(s): Subwoofer Channel	Off or Low-Pass only
Filter Slope(s): Subwoofer Channel	12/24 dB/octave
Filter Frequency Range: Subwoofer Channel	50 Hz-500 Hz
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	30 Hz, 24 dB/octave, defeatable
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	12 VDC negative ground (operates down to 10 V)
Current Consumption (idle)	-
Current Consumption (standby)	-
Fuse Rating	50 A
Recommended Fuse Type(s)	AFS, AGU or MaxiFuse™
Minimum Copper Power/Ground Wire Gauge	4 AWG wire
