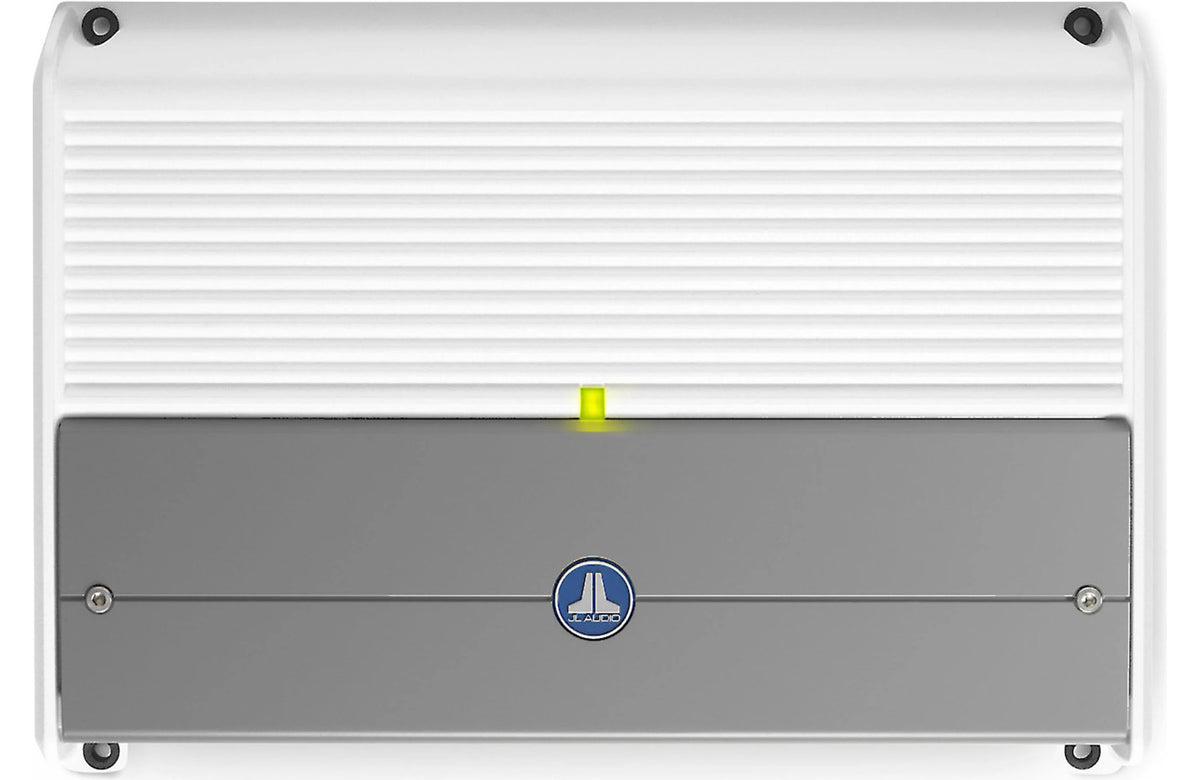

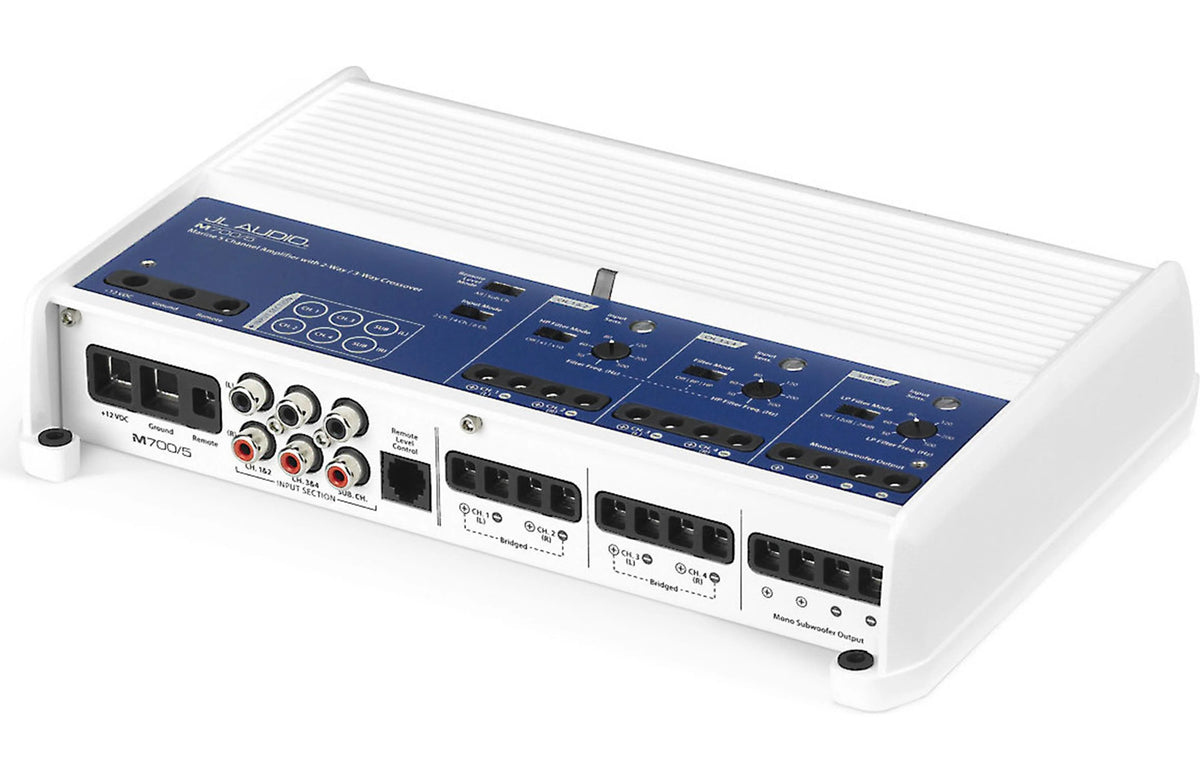

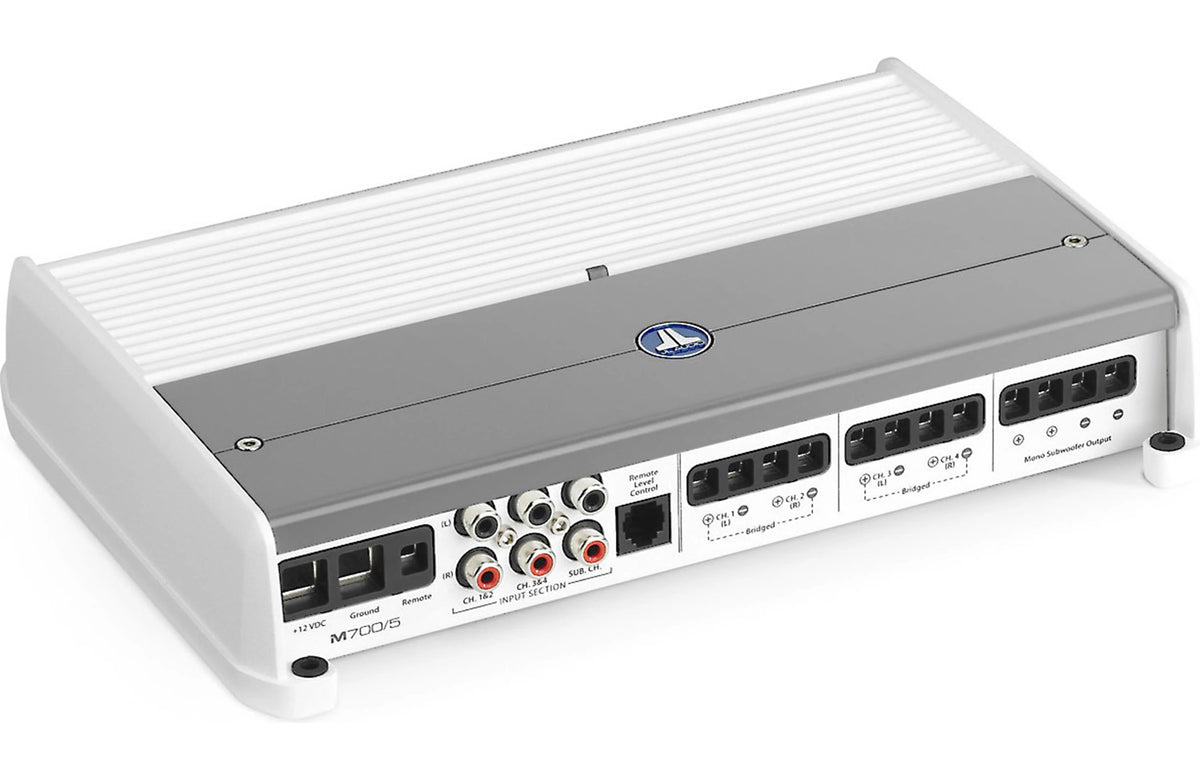

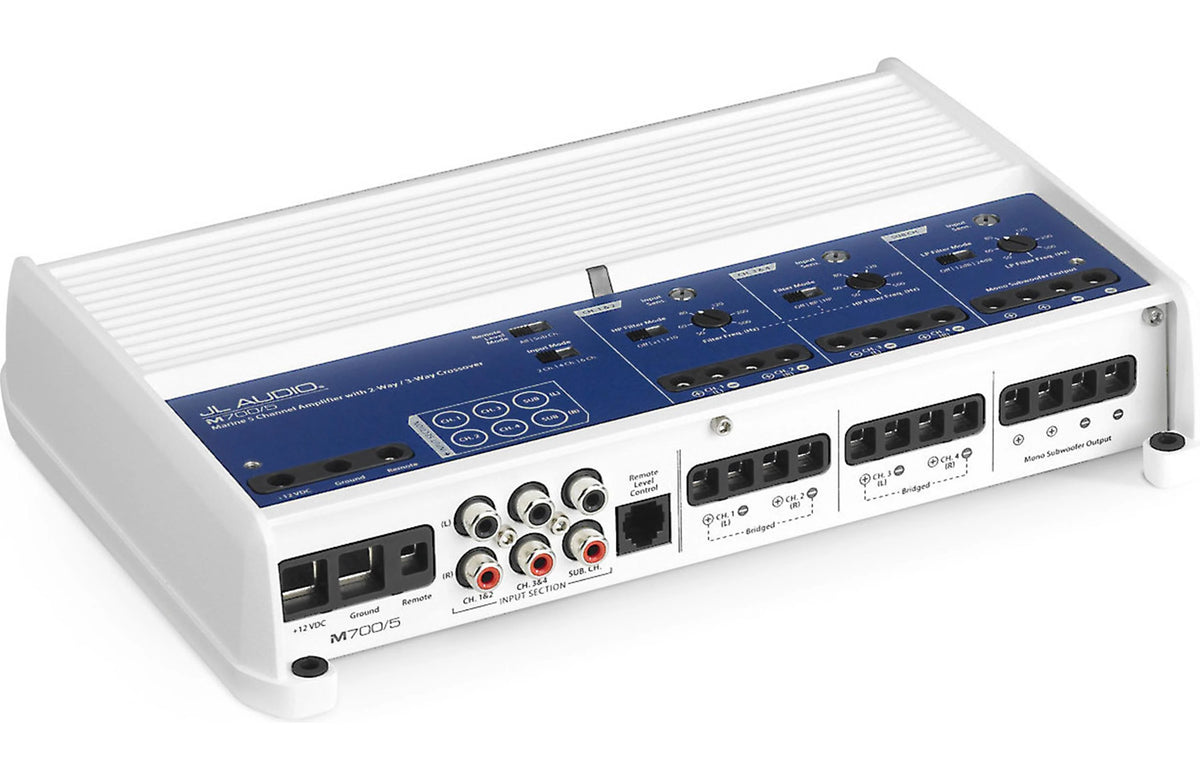

JL Audio M Series 700w 5 Channel Amplifier - M700/5

Name: JL Audio M Series 700w 5 Channel Amplifier - M700/5
Brand: JL Audio
SKU: JLA/98274
Price: 899.99 USD
Availability: OutOfStock

$899⁹⁹

Shipping calculated at checkout.

Description

JL Audio's M700/5 5-channel marine amp is small — less than 11" wide — but it delivers a massive amount of power from its compact chassis — up to 100 watts from each of its front and rear channels, plus up to 300 watts from the subwoofer channel. It owes these impressive specs to JL Audio's Class D NexD™ ultra-high-speed switching design, which eliminates the traditional drawbacks of a Class D amp design to deliver full-bandwidth performance, excellent efficiency, and very low distortion levels.

Great for a variety of applications

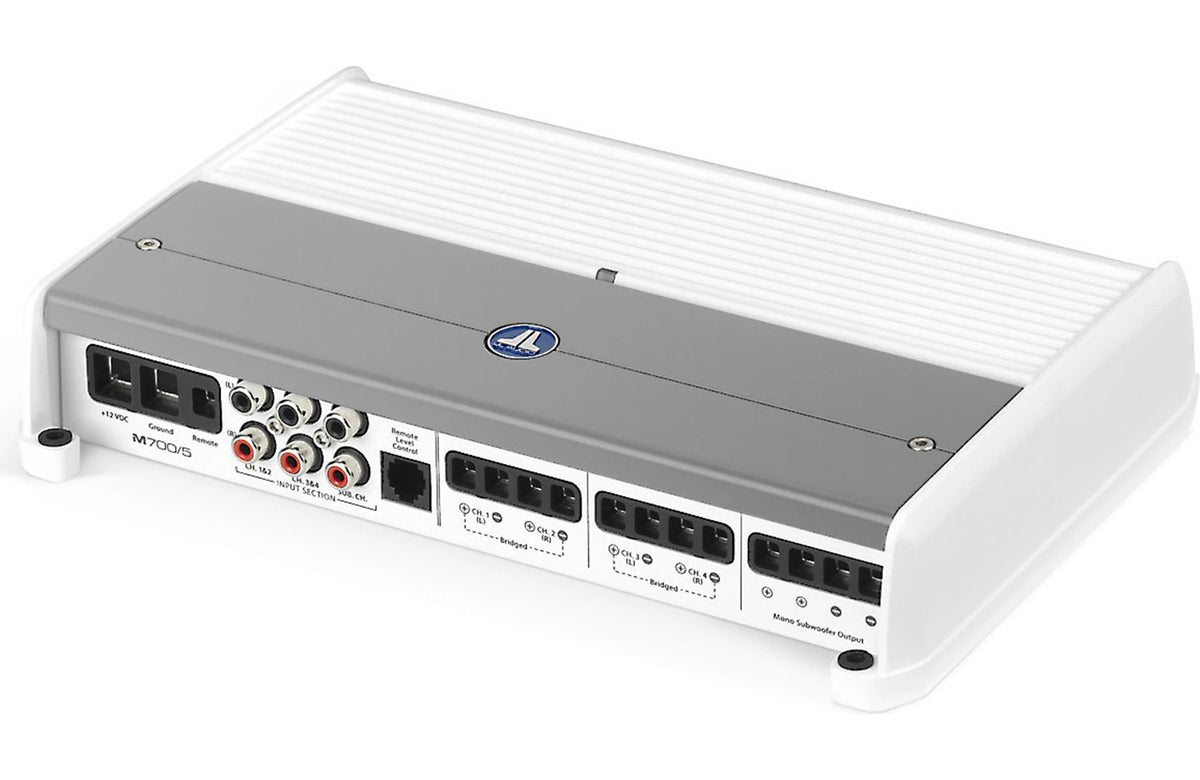

JL Audio designed this 5-channel amp to drive a complete marine audio system, running two sets of high-performance coaxial or component speakers, and powering up a sub at the same time with fifth channel. The special powder-coat finishes, the gasketed control cover, and the stainless-steel hardware all protect this amp against the harsh realities of the marine environment.

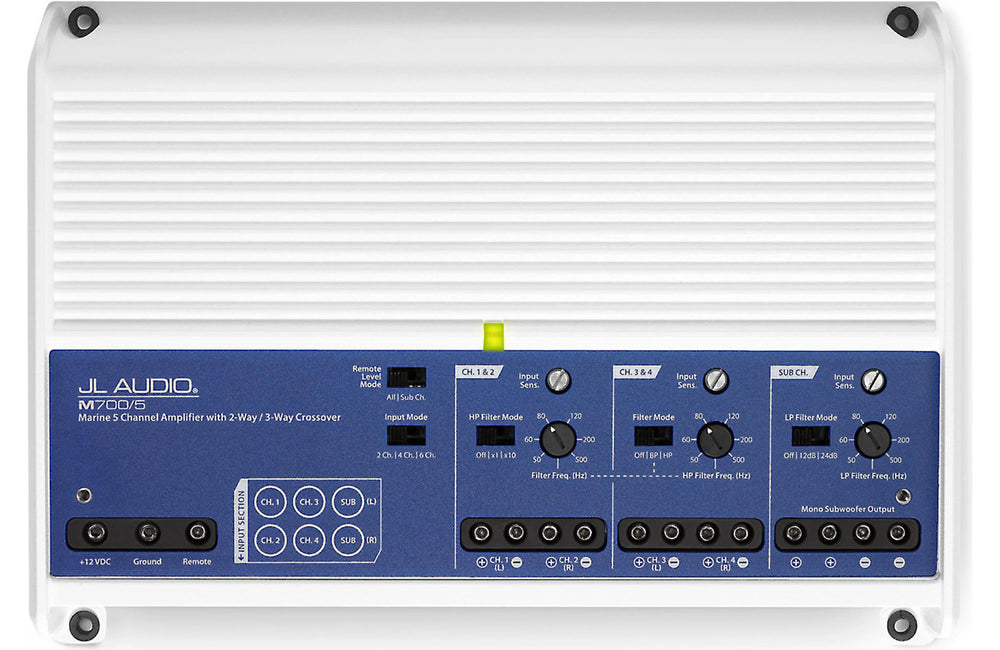

JL Audio M700/5

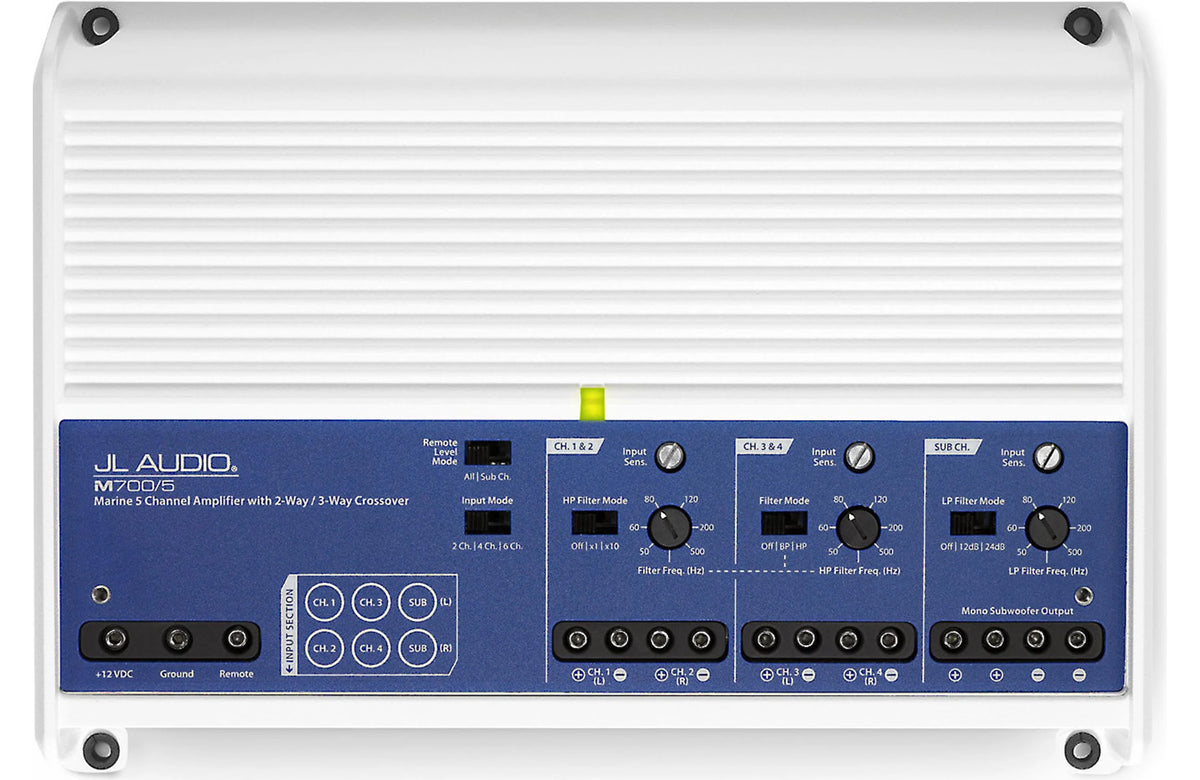

The built-in variable frequency filters offer high- or low-pass modes depending on the channels, so you can tailor the output to meet your system's needs. JL Audio's optional wired remote lets you adjust the amp's level from the helm.

Specifications

Identification

MPN	98274

Dimensions

Dimensions (H x W x D)	2.05" x 10.23" x 7.09" (52 x 260 x 180 mm)
Weight	-

Amplifier

Amplifier Class	Class D
Channels	5

Amplifier Power

Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	Main: 75 W x 4/Sub: 180 W x 1
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	Main: 100 W x 4/Sub: 300 W x 1
Rated Continuous (RMS) Power (12.5 V input @ 4 Ohm < 1% THD)	Main: 60 W x 4/Sub: 180 W x 1
Rated Continuous (RMS) Power (12.5 V input @ 2 Ohm < 1% THD)	Main: 90 W x 4/Sub: 300 W x 1

Amplifier Processing

Signal-to-Noise Ratio, referred to highest rated power (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	Main: > 104 dB / Sub: > 103 dB
Signal-to-Noise Ratio, referred to 1 W (A-weighted, 20 Hz-20 kHz noise bandwidth): Analog inputs	Main: > 84 dB / Sub: > 83 dB
Signal-to-Noise Ratio (Manufacturer Rating)	-
Damping Factor @ 4 Ω	Main: > 150/50 Hz / Sub: > 120/50 Hz
Damping Factor @ 2 Ω	Main: > 75/50 Hz / Sub: > 60/50 Hz
THD+N @ rated power	-
Frequency Response (+0, -1dB)	Main: 12 Hz-22 kHz / Sub: 10 Hz-1 kHz
Input Voltage Range @ RCA Inputs	100 mV - 4 V RMS
Input Impedance	-
Remote Level Control	-
Remote Level Modes	-
Channel Input Mode Switch	-
Pass-through Preamp Output	-
Source Channel Selection for PreOuts	-

Amplifier Filters

Bass Boost EQ	None
Output Polarity Switch	-
Filter Mode(s): Channels 1 & 2	Off or High-Pass only
Filter Slope(s): Channels 1 & 2	12 dB/octave
Filter Frequency Range: Channels 1 & 2	50 Hz-5 kHz
Filter Mode(s): Channels 3 & 4	Off, High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4	12 dB/octave
Filter Frequency Range: Channels 3 & 4	50 Hz-500 Hz
Filter Mode(s): Subwoofer Channel	Off or Low-Pass only
Filter Slope(s): Subwoofer Channel	12/24 dB/octave
Filter Frequency Range: Subwoofer Channel	50 Hz-500 Hz
High-Pass/Low-Pass Full Range Filter	-
HP Variable Crossover Frequency Range	-
LP Variable Crossover Frequency Range	-
Infrasonic Filter	-
Detented, Calibrated Filter Potentiometers	-

Electrical

Operating Voltage	12 VDC negative ground (operates down to 10 V)
Current Consumption (idle)	-
Current Consumption (standby)	-
Fuse Rating	60 A
Recommended Fuse Type(s)	MAXI or AGU
Minimum Copper Power/Ground Wire Gauge	4 AWG wire
