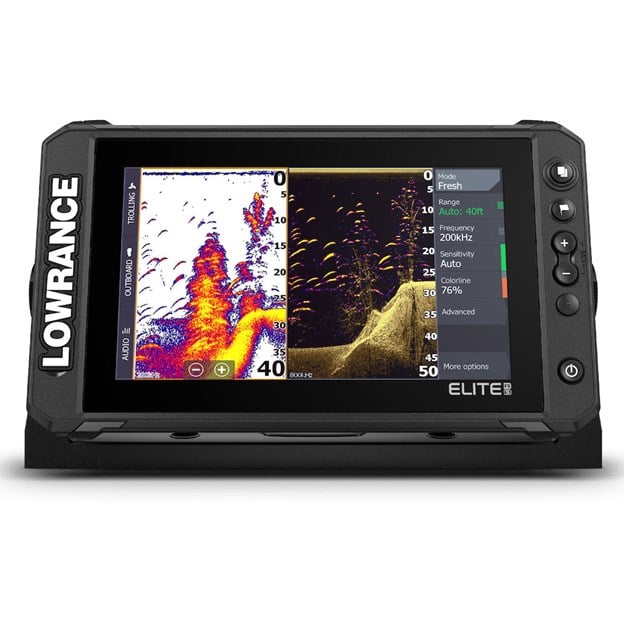

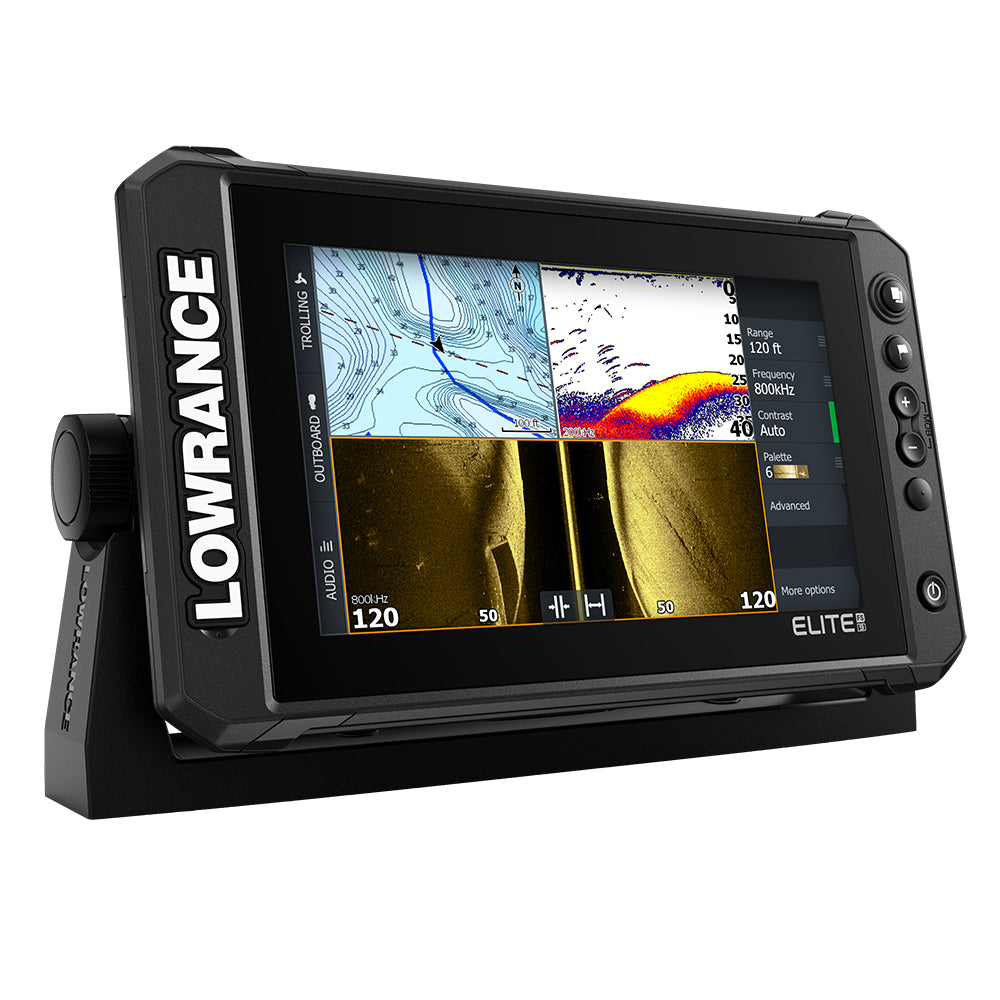

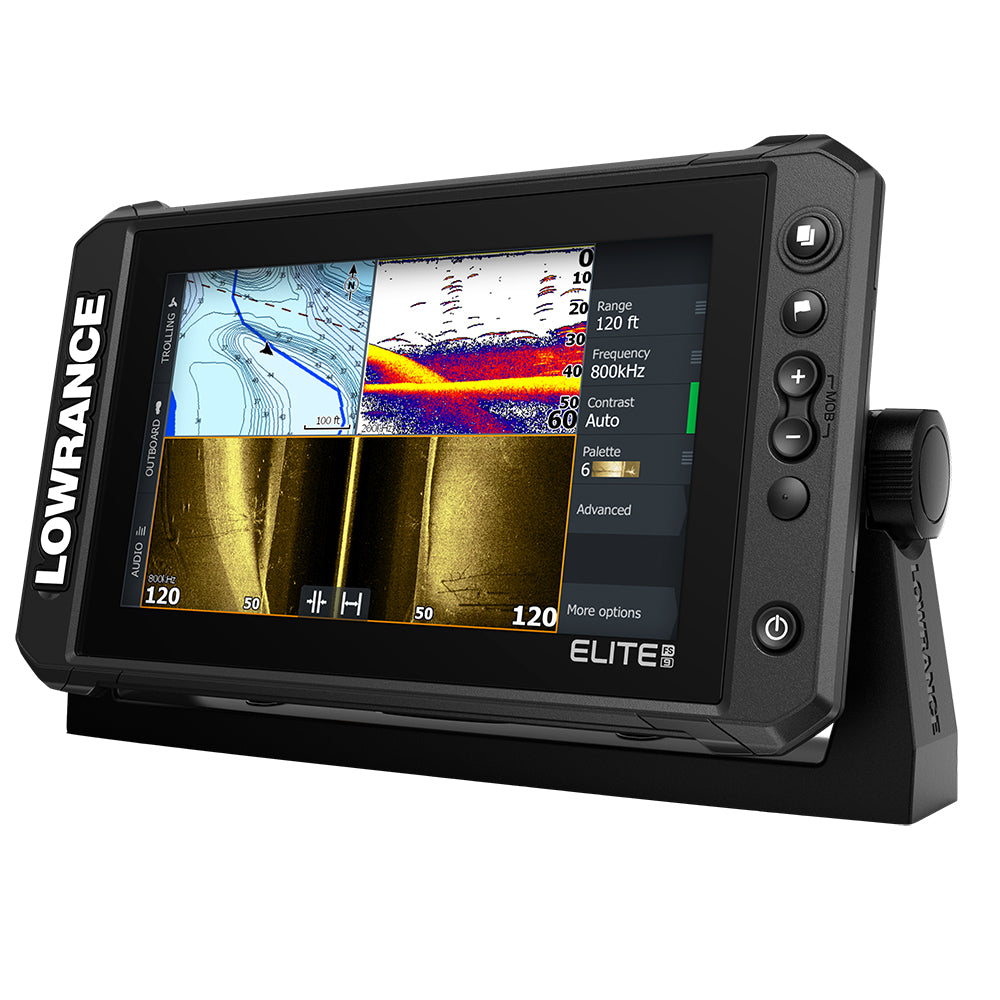

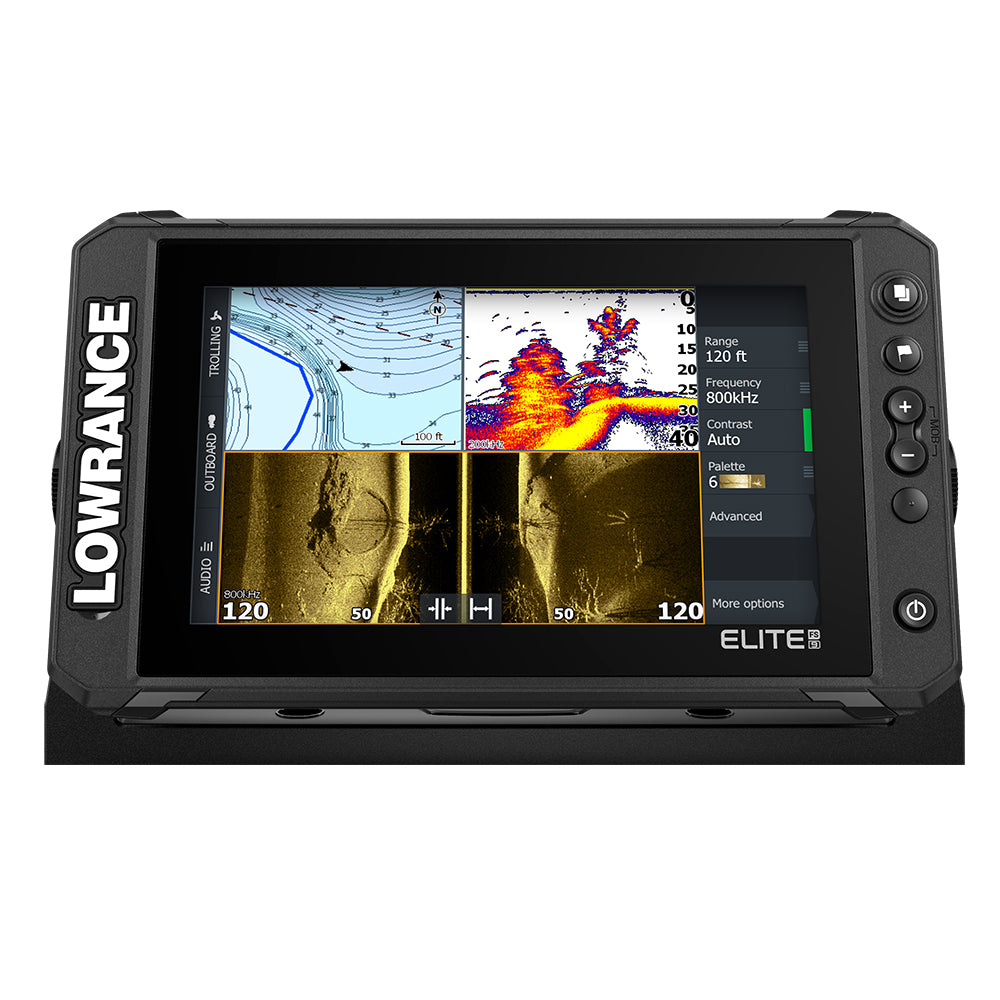

Lowrance Elite FS 9 Chartplotter/Fishfinder - No Transducer
Description
Description
Elite FS 9 Chartplotter/Fishfinder - No Transducer
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.
Key Features
- 9" Display
- ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001)
- Transducer Required
- FishReveal™
- Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes
- Other mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor
C-Map Contour+ Mapping Preloaded
You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.
Key Features
- Custom depth shading
- Easy routing, Lowrance presentation for icons
- High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
- Standard navigation data
- Fishing POIs
Specifications
Specifications
Identification
| MPN | 000-15707-001 |
|---|---|
| Barcode | 9420064117093 |
General
| Unit Type | Chartplotter/Fishfinder Combo |
|---|---|
| Screen Size | 9" |
Display
| Display Type | IPS |
|---|---|
| Resolution | 800 x 480 |
| Brightness | >1,200 nits |
| Input | Multitouch and keys |
Navigation
| GPS / GNSS | GPS (WAAS, EGNOS, MSAS) |
|---|---|
| Update Rate | 10 Hz |
| Preloaded Charts | C-MAP DISCOVER OnBoard |
| Chart Compatibility | C-MAP DISCOVER OnBoard, C-MAP REVEAL |
| Card Slots | 1x microSD (32 GB max) |
| Internal Storage | - |
| Waypoints / Routes / Tracks | 3,000 / - / - |
Sonar
| Built-In Sonar | Yes |
|---|---|
| Sonar Power | - |
| CHIRP / Traditional | CHIRP, Broadband |
| Down Imaging | Active Imaging |
| Side Imaging | SideScan |
| Transducer Port | - |
| Included Transducer | No |
Connectivity
| NMEA 2000 | 1 Micro-C port |
|---|---|
| NMEA 0183 | - |
| J1939 | - |
| Ethernet / Network | 1x 100 Mbit |
| Wi-Fi | Yes (802.11 b/g/n) |
| Bluetooth | Yes (4.0) |
| Video In / Out | - |
Dimensions
| Unit Dimensions (W x H x D) | - |
|---|---|
| Dimensions with Bracket | - |
| Flush Mount Cutout | - |
| Mounting Options | Gimbal bracket or dash flush mount |
| Weight | 2.7 lb (1.2 kg) |
Electrical
| Power Input | 10.8–17 VDC |
|---|---|
| Power Consumption / Current Draw | 2.0 A max @ 13 VDC (backlight full) |
Additional
| Water Rating | IPX7 (card door closed) |
|---|---|
| Compass-Safe Distance | 12" (30 cm) |
| Operating Temperature | 5° to 131° F (-15° to 55° C) |
| Country of Origin | - |
Reviews (0)
Reviews (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Shipping Methods:
Support
Support
Warranty
2 Years
* ALL WARRANTY IS THROUGH MANUFACTURE *
